Intermatic, Inc - Intermatic FF5M 5 Minute 125 to 277 VAC 60 Hz SPST Countdown Timer

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 078275184107

  • Amperage - 15 Amp

  • Applications - Indoor, CFLs Lighting, Fans, Electric Motors, Heaters, HVACR

  • Catalog Number - FF5M

  • Color - Silver

Packaging

  • 1 ea

EAN

00078275184107

Part #

129797

Catalog #

FF5M

Commercial reference

FF5M

12-Digit UPC:

078275184107

Amperage:

15 Amp

Applications:

Indoor, CFLs Lighting, Fans, Electric Motors, Heaters, HVACR

Catalog Number:

FF5M

Color:

Silver

Country of Origin:

Tunisia

Depths:

1-1/4 Inch

ERP_productname:

INTM FF5M 5 MINUTE 125-277 V SPST

Family Brand Name:

Intermatic

Heights:

4-1/8 Inch

Input Voltage:

125-277 V

Material:

Plastic

Mounting Type:

Wall Mount

Number of Poles:

1 Pole

Size:

2.79 HEIGHT X 1.6 WIDTH X 1.19 DEPTH IN, 70.86 HEIGHT X 40.64 WIDTH X 30.22 DEPTH MM

Tc Connection:

Teeter Type

Type:

Commercial, Spring Wound, Auto-Off, Mechanical

Voltage:

125-277 VAC

Widths:

1.75 in

SoneparProductId:

SKU_US_25503907

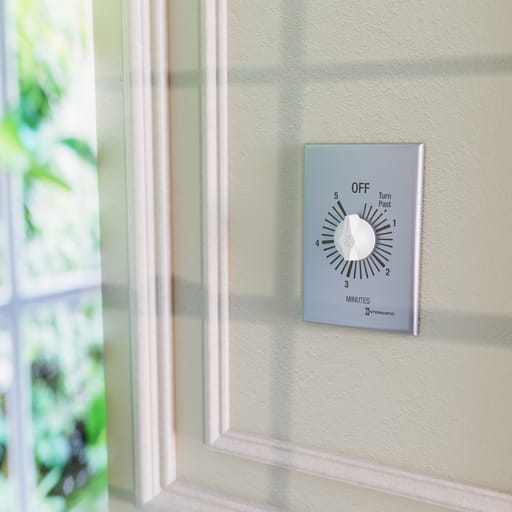

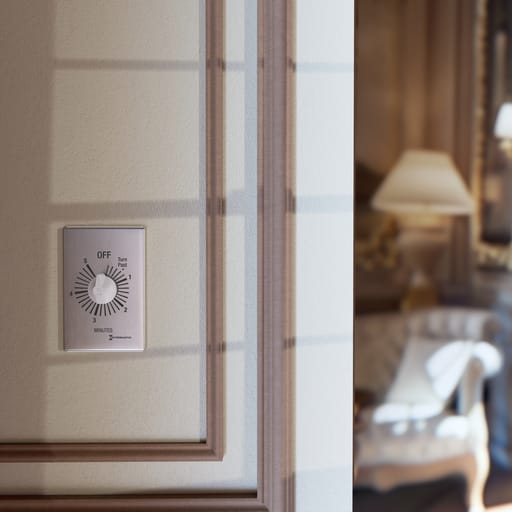

The FF Series Commercial Countdown Timers are designed to replace any standard wall switch and do not require electricity to operate. These energy-efficient switches automatically limit the ON times for fans, lighting, motors, heaters, and other energy consuming loads. A commercial "brushed metal" look plate (plastic construction) meets NEC requirements. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly. Features: 5-Minute timer; SPST (Single-Pole Single-Throw); Breaks circuit at end of timing cycle; No electricity required to operate; Replaces any standard or decorator single-gang wall switch; Automatically limits ON time for energy consuming loads; Quick and easy installation; Time-saving up front terminal connection with teeter-type terminals; Brushed metal look switch plate meets NEC requirements (plate is included); Incandescent/fluorescent/CFL/LED compatible
