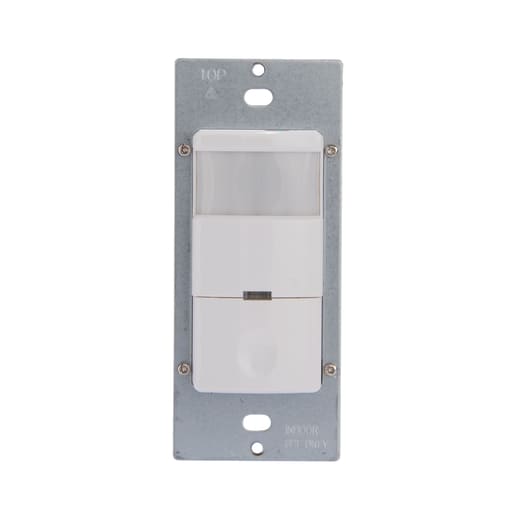

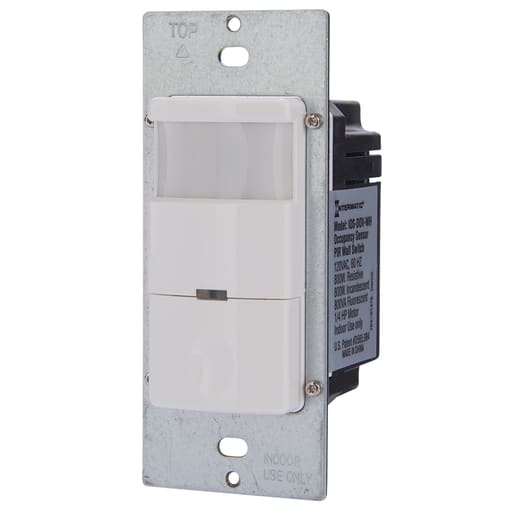

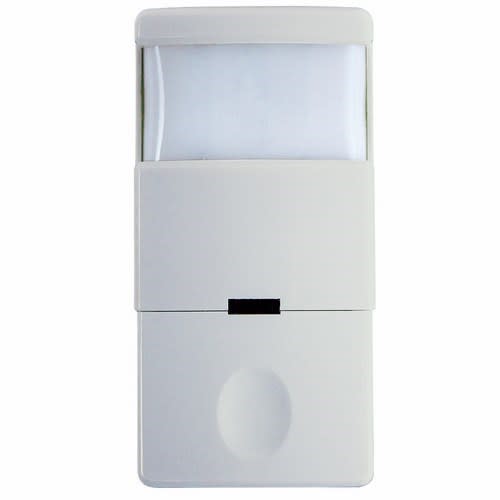

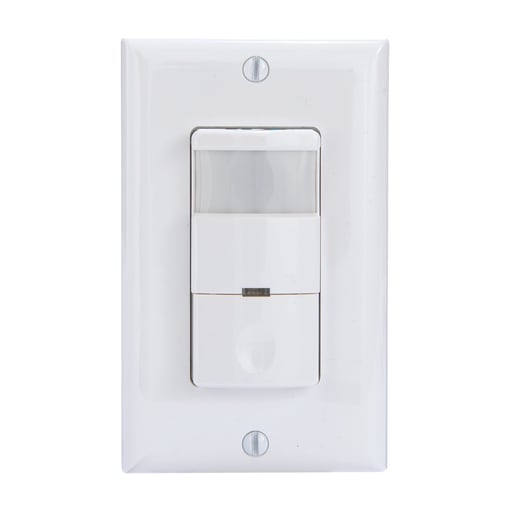

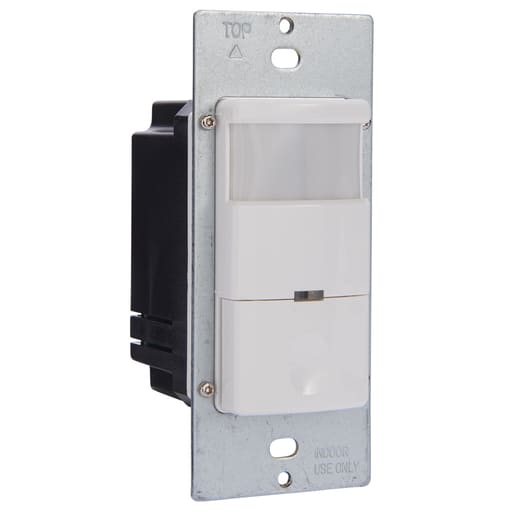

Intermatic, Inc - Intermatic IOS-DOV-WH 120 VAC 60 Hz White 180 Degrees Self Adaptive In-Wall PIR Sensor Switch

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 078275125209

  • Applications - Indoor Sensing Control

  • Catalog Number - IOS-DOV-WH

  • Color - White

  • Country of Origin - China

Packaging

  • 1 ea

EAN

00078275125209

Part #

185167

Catalog #

IOS-DOV-WH

Commercial reference

IOS-DOV-WH

12-Digit UPC:

078275125209

Applications:

Indoor Sensing Control

Catalog Number:

IOS-DOV-WH

Color:

White

Country of Origin:

China

Depths:

1-3/4 Inch

ERP_productname:

INTM IOS-DOV-WH OCC/VAC SENSOR 180DEG SNGL REL WH 2IN1

Family Brand Name:

Intermatic

Grade:

Commercial

Heights:

2-5/8 Inch

Input Voltage:

120 V

Mounting Type:

Wall

Number of Circuits:

1

Sensing Range:

180 DEG 1200 SQ-FT

Sensor Type:

Passive Infrared

Type:

Electronic, Magnetic

Voltage:

120 Volt

Widths:

1.313 in

SoneparProductId:

SKU_US_26091416

The passive infrared sensors work by detecting the difference between heat emitted from the human body in motion and the background space. The sensor switch can turn a load ON and hold it as long as the sensor detects occupancy. After no motion is detected for the set time delay, the load turns OFF automatically. The sensor switch has one relay (equal to single pole switch), it also includes Ambient Light Level Sensor. Features: Passive Infrared (PIR) sensing for presence detection; Coverage: 180., 1200 ft2 with non-obstructed views; User-selectable Vacancy or Occupancy switch mode; Zero-crossing technology for long life and performance; Adjustable ambient light sensor override; Incandescent/Fluorescent/CFL compatible; IOS-DOV models require a neutral connection; Fits standard decorator wall plate (included); Adjustable Sensitivity Settings: (30% - 100%); Automatic ON/OFF Control
