Intermatic, Inc - Intermatic K4035 480 Volt 50/60 Hz 7200 W Fixed Position Mounting
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 078275530041
Applications - Dusk to Dawn Lighting Control
Catalog Number - K4035
Color - Gray
Depths - 20.6 mm
Packaging
1 ea
EAN
00078275530041
Part #
158110
Catalog #
K4035
Commercial reference
K4035
12-Digit UPC:
078275530041
Applications:
Dusk to Dawn Lighting Control
Catalog Number:
K4035
Color:
Gray
Depths:
20.6 mm
ERP_productname:
INTM K4035 480 V 50/60 HZ. 7200 YATT "T" FIXED POSTION MOUNTING
Family Brand Name:
Intermatic
Heights:
46 mm
Input Voltage:
480 V
Mounting Type:
Button Fixed Mount
Size:
1-13/16 LENGTH X 1-5/16 WIDTH X 1-9/16 DEPTH IN, 4.6 LENGTH X 3.3 WIDTH X 4 DEPTH CM
Tc Connection:
Color Coded Lead
Type:
Thermal Type Photo Cell
Widths:
23.8 mm
SoneparProductId:
SKU_US_26427039

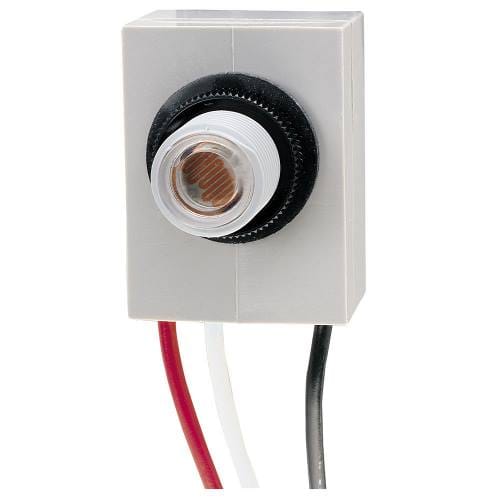

These photocontrols install within lighting fixtures, post lamps, or in-wall boxes to provide dusk-to-dawn ON/OFF control of outdoor lighting. Features: Mechanical bimetal switch with Cadmium Sulfide photocell; Compact size fits into standard outlet box, post lamp, wall pack and other lighting fixtures; Delay feature prevents unwanted OFF switching; 3?8\"-18 NPSM, .\" long stem with locking nut and washer gasket; K4321C includes weatherproof wall plate and neoprene gasket - Applications: Exterior Lighting; Street Lighting; Parking Lot; Pedestrian Pathway; Landscape Lighting - Related Accessories and Parts: 6LV1352 K43-WP-KIT
