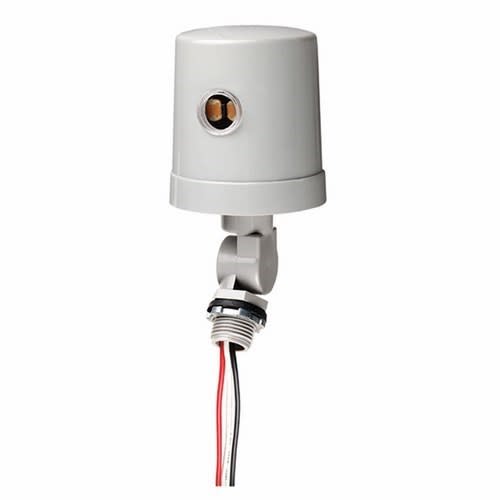

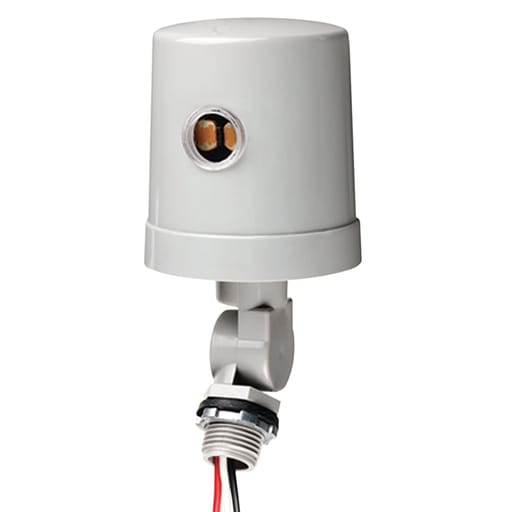

Intermatic, Inc - Intermatic K4236C 120 to 277 VAC 50/60 Hz 1800 to 4150 W Stem and Swivel Mount Thermal Photocontrol

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 078275029606

  • Amperage - 15000 mA

  • Applications - Outdoor Lighting Control

  • Catalog Number - K4236C

  • Color - Gray

Packaging

  • 1 ea

EAN

00078275029606

Part #

108315

Catalog #

K4236C

Commercial reference

K4236C

12-Digit UPC:

078275029606

Amperage:

15000 mA

Applications:

Outdoor Lighting Control

Catalog Number:

K4236C

Color:

Gray

Country of Origin:

Mexico

Depths:

1.563 Inch

ERP_productname:

INTM K4236C 120-277V PC SWIVEL MTSW

Family Brand Name:

Intermatic

Finish:

Plastic

Heights:

5 Inch

Input Voltage:

120-277 V

Material:

Plastic

Mounting Type:

Stem And Swivel Fixed Mount

Product Category:

Home Improvement & Commercial Supplies - Electrical & Lighting Sensor, Switches, Fuses and Gauges

Product Type:

Home Improvement & Commercial Supplies - Electrical & Lighting Sensor, Switches, Fuses and Gauges

Sensor Type:

Thermal photocontrol

Size:

3 DIAMETER X 6-1/4 HEIGHT IN, 7.6 DIAMETER X 15.9 HEIGHT CM

Tc Connection:

Color Coded Lead

Type:

Cylinder Plain, Thermal

Voltage:

277 Volt

Widths:

1.563 in

SoneparProductId:

SKU_US_25322761

These photocontrols are provided with a swivel arm for easy and flexible installation to standard outdoor light fixtures or electrical boxes. Features: Mechanical bimetal switch with Cadmium Sulfide photocell; Delay feature prevents unwanted OFF switching; High strength, UV resistant plastic housing; Swivel with 1?2\"-14 NPSM threaded stem; Washer gasket and locking nut included; #18 AWG, 6\" wire leads; NA
