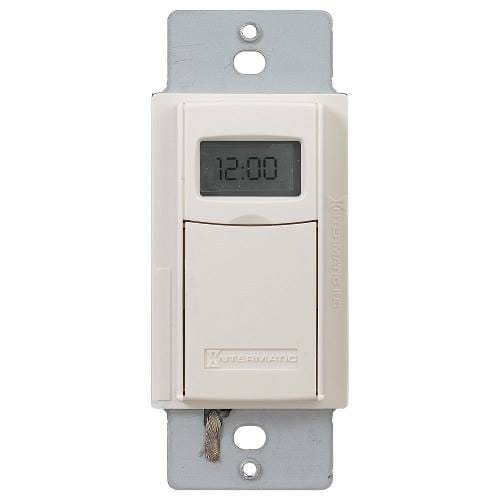

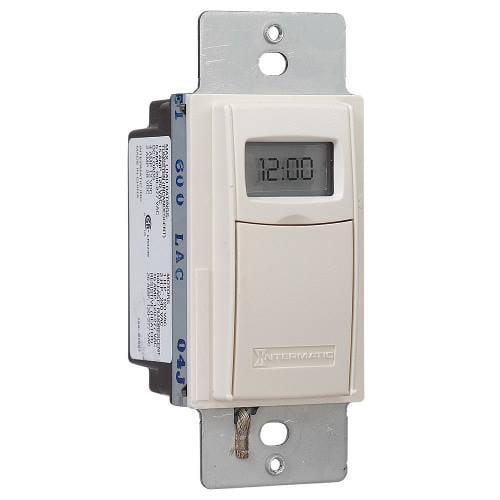

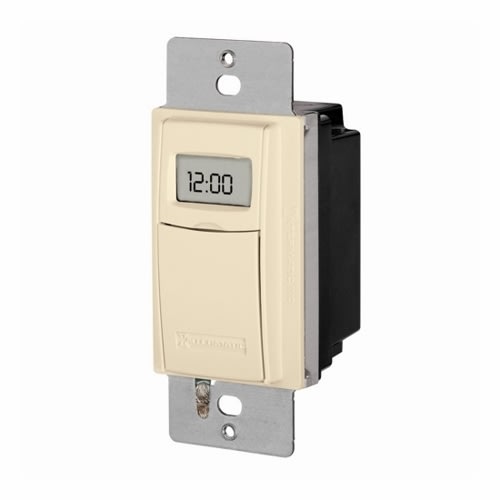

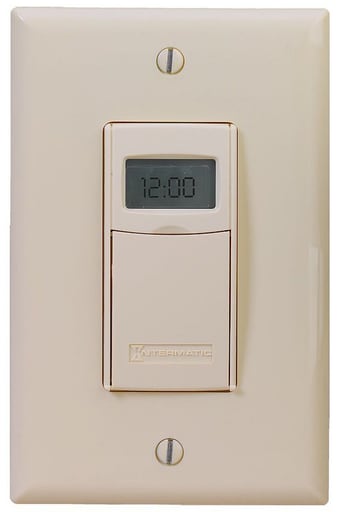

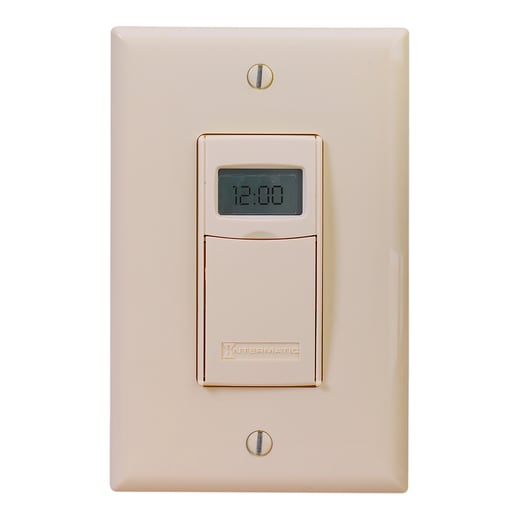

Intermatic, Inc - Intermatic ST01A 7-Day 120 to 277 VAC 12 to 28 VDC 1-Pole 3-Way Almond Digital In-Wall Timer
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 078275127579
Applications - HVACR
Catalog Number - ST01A
Color - Almond
Country of Origin - Thailand
Packaging
1 ea
EAN
00078275127579
Part #
171615
Catalog #
ST01A
Commercial reference
ST01A
12-Digit UPC:
078275127579
Applications:
HVACR
Catalog Number:
ST01A
Color:
Almond
Country of Origin:
Thailand
Depths:
1.813 Inch
ERP_productname:
INTM ST01A SELF ADJUSTING TIMER
Family Brand Name:
Intermatic
Heights:
4-1/8 Inch
Input Voltage:
12-28 V
Mounting Type:
Wall Mount
Number of Poles:
1 Pole
Tc Connection:
Wire Lead
Type:
Heavy Duty, 1-Pole
Widths:
1.75 in
SoneparProductId:
SKU_US_25473349
Highly versatile Heavy-Duty Timers are ideal for any application that requires a simple or complex ON/OFF schedule, regardless of load. No neutral connection is required. Features: Versatile 7-day programmable schedules with up to 40 ON/OFF events; Astronomic clock feature determines dawn and dusk times; Automatic Daylight Saving Time (DST) adjustment; Random mode varies ON/OFF schedule to provide a \"lived-in\" appearance; Single or 3-way switch compatible installation; Incandescent/fluorescent/CFL/LED compatible; Isolated switch allows timer to be used with any load type, including AC and DC loads; Replaceable CR2 lithium battery provides up to three years of operation; No neutral wire connection enables easy retrofitting and quicker installation; Decorator switch plate not included
