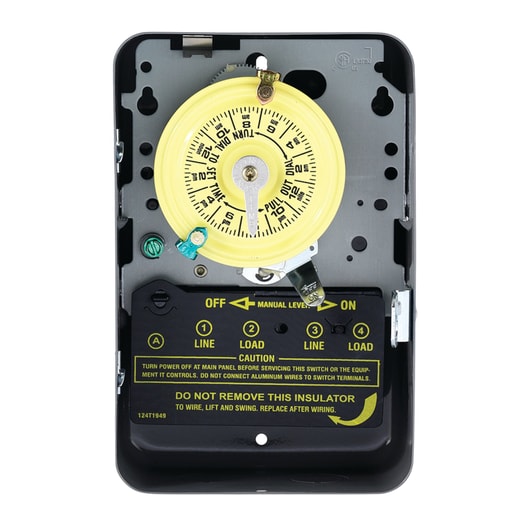

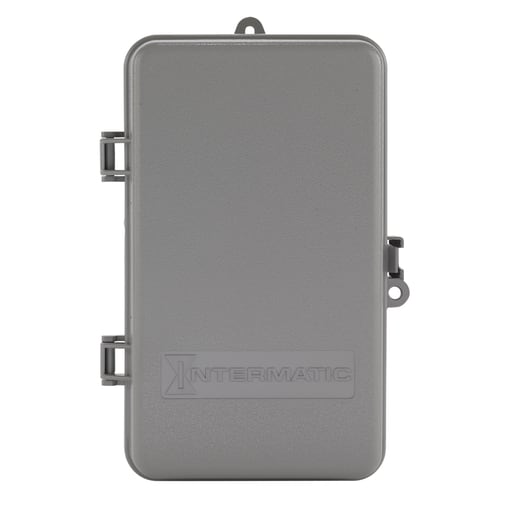

Intermatic, Inc - Intermatic T104 40A, 208-277V 24 Hour Heavy Duty Indoor Time Switch
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 078275000025
Amperage - 40 Amp
Applications - Commercial, Industrial, Residential, Indoor, HVACR
Catalog Number - T104
Color - Gray
Packaging
1 ea
EAN
00078275000025
Part #
120963
Catalog #
T104
Commercial reference
T104
12-Digit UPC:
078275000025
Amperage:
40 Amp
Applications:
Commercial, Industrial, Residential, Indoor, HVACR
Catalog Number:
T104
Color:
Gray
Country of Origin:
Mexico
Depths:
3.437 Inch
ERP_productname:
INTM T104 DPST 208-277V TIME SW
Enclosure:
NEMA 1
Enclosure Type:
Indoor type 1 metal
Family Brand Name:
Intermatic
Heights:
7-7/8 Inch
Input Voltage:
208-277 V
Material:
Metal
Mounting Type:
Wall Mount
Number of Circuits:
1
Number of Poles:
2 Pole
Product Category:
Medical/Dental/Veterinary - Timers
Product Type:
Medical/Dental/Veterinary - Timers
Size:
5 LENGTH X 3 WIDTH X 7-3/4 HEIGHT IN, 12.70 LENGTH X 7.62 WIDTH X 19.69 HEIGHT CM
Tc Connection:
Teeter Type
Type:
Electromechanical
Voltage:
208-277 VAC
Wattage:
3 Watt
Widths:
5.125 in
SoneparProductId:
SKU_US_25322131
