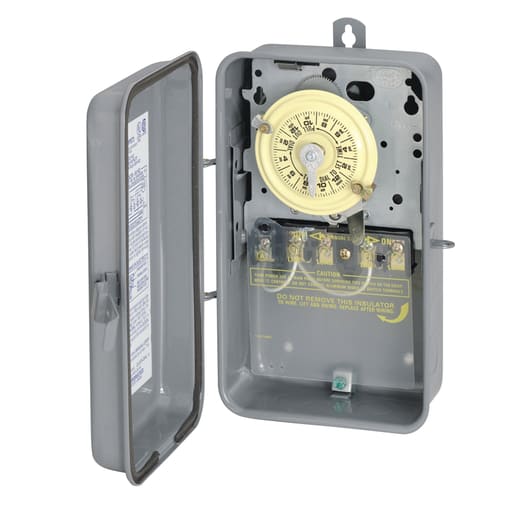

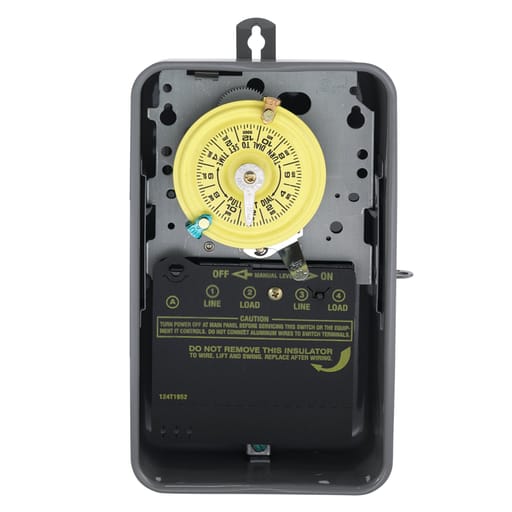

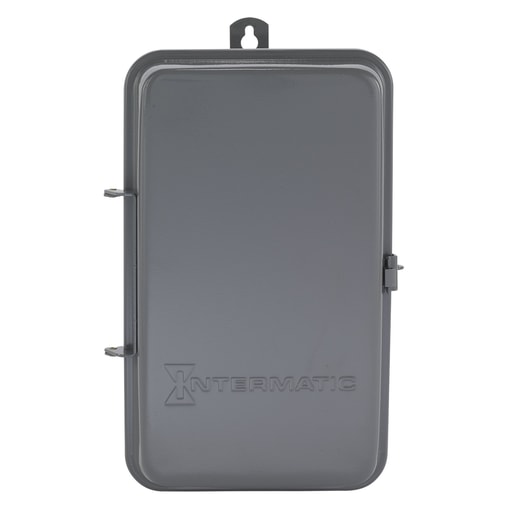

Intermatic, Inc - Intermatic T104R 40A, 208-277V 24 Hour Heavy Duty Outdoor Time Switch
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 078275000124
Amperage - 40 Amp
Applications - Indoor Lighting Control,Outdoor Lighting Control,Timing/Scheduling ON/OFF
Catalog Number - T104R
Color - Gray
Packaging
1 ea
EAN
00078275000124
Part #
121004
Catalog #
T104R
Commercial reference
T104R
12-Digit UPC:
078275000124
Amperage:
40 Amp
Applications:
Indoor Lighting Control,Outdoor Lighting Control,Timing/Scheduling ON/OFF
Catalog Number:
T104R
Color:
Gray
Country of Origin:
Mexico
Depths:
3-5/8 Inch
ERP_productname:
INTM T104R DPST 208-277V MECH
Enclosure:
NEMA 3R Steel
Family Brand Name:
NA
Heights:
10-1/8 Inch
Input Voltage:
208-277 V
Mounting Type:
Wall Mount
Number of Circuits:
1
Number of Poles:
2 Pole
Size:
5-1/2 LENGTH X 4 WIDTH X 9-3/8 HEIGHT IN, 13.97 LENGTH X 10.16 WIDTH X 23.81 HEIGHT CM
Tc Connection:
Teeter Type
Type:
Electromechanical
Voltage:
208-277 VAC
Wattage:
3 Watt
Widths:
6.5 in
SoneparProductId:
SKU_US_25321911
