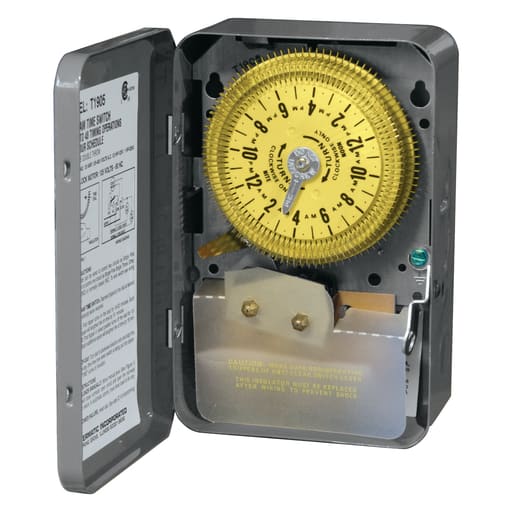

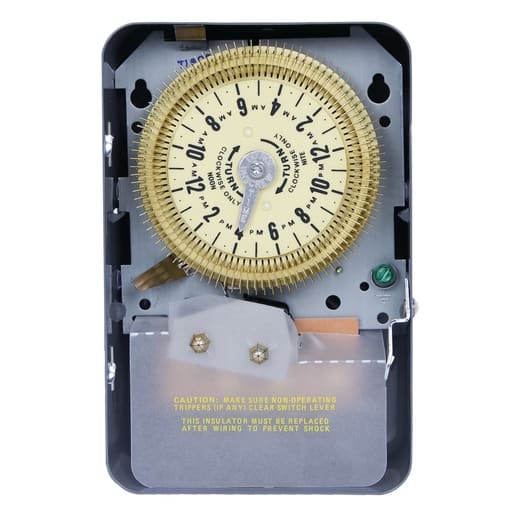

Intermatic, Inc - Intermatic T1905 NEMA 1 125 VAC 60 Hz 20 Amp SPDT Electromechanical Time Switch
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 078275191013
Amperage - 10 Amp
Applications - For Indoor use
Catalog Number - T1905
Color - Gray
Packaging
1 ea
EAN
00078275191013
Part #
121337
Catalog #
T1905
Commercial reference
T1905
12-Digit UPC:
078275191013
Amperage:
10 Amp
Applications:
For Indoor use
Catalog Number:
T1905
Color:
Gray
Country of Origin:
Mexico
Depths:
3.437 Inch
ERP_productname:
INTM T1905
Enclosure:
NEMA 1
Family Brand Name:
Intermatic
Heights:
7-7/8 Inch
Input Voltage:
125 V
Mounting Type:
Wall Mount
Number of Circuits:
1
Number of Poles:
1 Pole
Type:
Electromechanical
Voltage:
125 Volt
Wattage:
3 Watt
Widths:
5.125 in
SoneparProductId:
SKU_US_25614705
This series of mechanical time switches offers more flexible scheduling capabilities by offering 15-minute intervals. These units also come with trippers that slide in or out easily for fast and accurate settings. All units can control up to 20 A of electrical load and have a single pole, double throw switch. Features: Provides up to 96 operations (48 ON/48 OFF) every 24 hours; Models with skipper wheel allow for operations to be omitted on selected days of the week; 15-minute intervals; Captive trippers slide in and out of dial for fast, accurate setting; NA
