Intermatic, Inc - Intermatic WP1220C 2-Gang Receptacle In-Use Cover, 2-1/4" Deep - Clear

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 078275072695

  • Applications - Residential, Industrial, Sports Fields, Commercial, Agricultural, Signage, Schools

  • Catalog Number - WP1220C

  • Color - Clear

  • Construction - Heavy-Duty Polycarbonate

Packaging

  • 1 ea

EAN

00078275072695

Part #

122425

Catalog #

WP1220C

Commercial reference

WP1220C

12-Digit UPC:

078275072695

Applications:

Residential, Industrial, Sports Fields, Commercial, Agricultural, Signage, Schools

Catalog Number:

WP1220C

Color:

Clear

Construction:

Heavy-Duty Polycarbonate

Country of Origin:

Mexico

Depths:

57 mm

ERP_productname:

INTM WP1220C 2G VERT HOR WP COVER

Enclosure Rating:

3R

Enclosure Type:

NEMA 3R

Family Brand Name:

Intermatic

Finish:

Gloss

Heights:

5-1/2 Inch

Length:

139.7 mm

Material:

Polycarbonate

Mounting Type:

Vertical, Screw

Number of Gangs:

2 Gang

Product Category:

Home Improvement & Commercial Supplies - Wall Plates & Covers

Product Type:

Home Improvement & Commercial Supplies - Wall Plates & Covers

Shape:

Rectangle

Size:

2-1/4 DEPTH IN, 57.15 DEPTH MM

Type:

2-Unit, Rectangular, Standard, Receptacle

Widths:

127 mm

SoneparProductId:

SKU_US_25322442

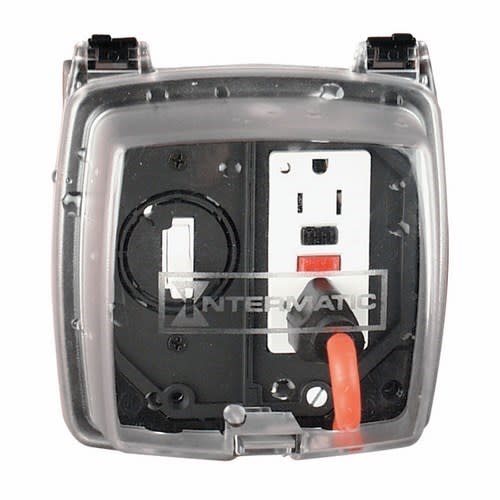

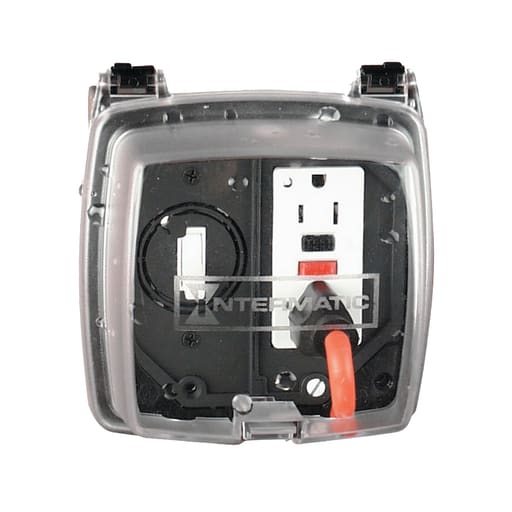

Plastic In-Use Weatherproof Covers are easy to install and include a gasket, mounting screws, base, cover assembly, and inserts to meet the needs of a variety of applications. Features: Complies with 2020 NEC Article 314.15 for damp and wet locations; UL Certified for Type 3R outdoor enclosures; Meets requirements for cold impact testing: -60± F (-51± C); Heavy-duty UV stabilized polycarbonate cover, mounting base and inserts; 1?8\" (3 mm) thick neoprene gasket with slits for mounting screws; Six inserts provided with all models that allow each model to meet multiple installations (up to 70 configurations); Max cord size: (2) #14 AWG or (1) #12 AWG, WP1250 (2) #14 AWG or (1) #10 AWG; Warranty: 1-year limited; NA
