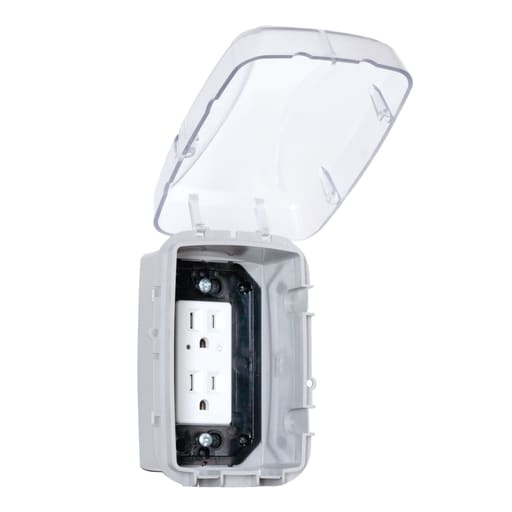

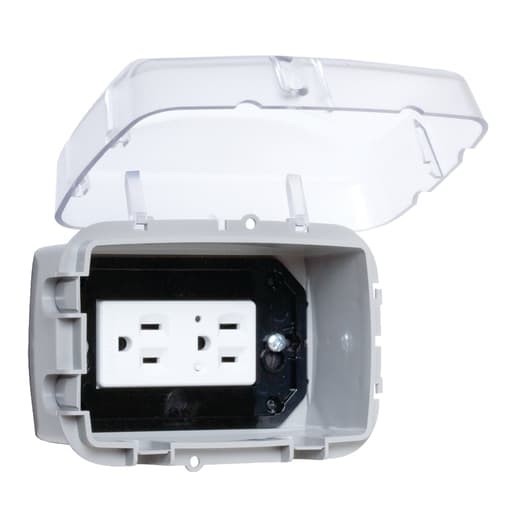

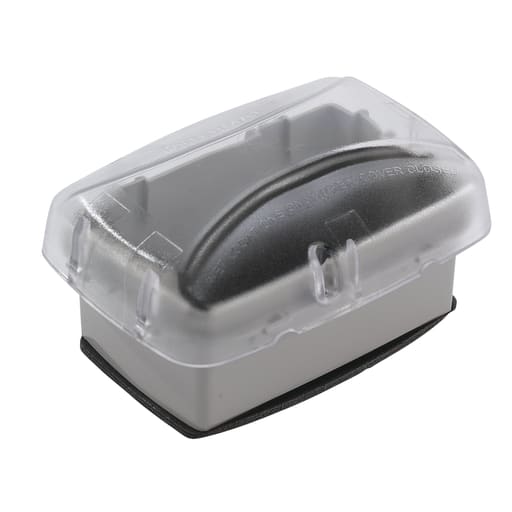

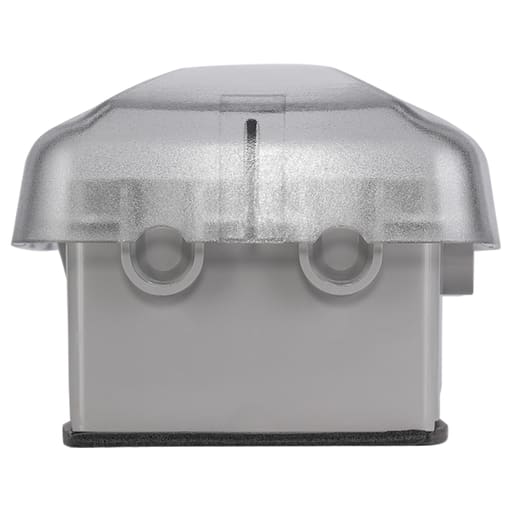

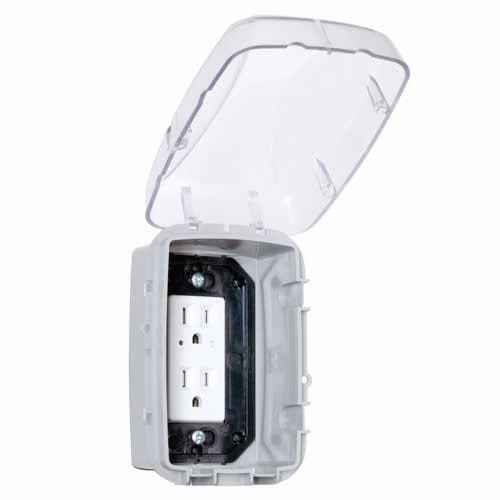

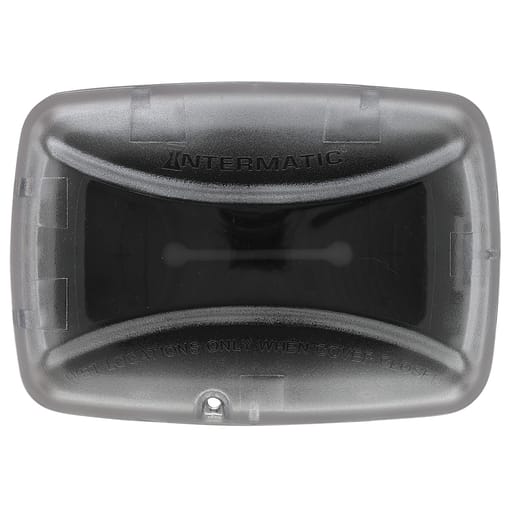

Intermatic, Inc - Intermatic WP3100C 1-Gang Receptacle In-Use Cover, Horizontal / Vertical, 2-3/4" Deep, Hidden Hinges - Clear

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 078275106093

  • Applications - Residential, Industrial, Sports Fields, Commercial, Agricultural, Signage, Schools

  • Catalog Number - WP3100C

  • Color - Clear, Gray

  • Construction - Heavy-Duty Polycarbonate

Packaging

  • 1 ea

EAN

00078275106093

Part #

160591

Catalog #

WP3100C

Commercial reference

WP3100C

12-Digit UPC:

078275106093

Applications:

Residential, Industrial, Sports Fields, Commercial, Agricultural, Signage, Schools

Catalog Number:

WP3100C

Color:

Clear, Gray

Construction:

Heavy-Duty Polycarbonate

Country of Origin:

Mexico

Depths:

69.85 mm

ERP_productname:

INTM WP3100C 1G IN USE COVER HOR/VERT 16 CONFIGURATION

Family Brand Name:

Intermatic

Finish:

Matte

Heights:

5-3/4 Inch

Length:

70 mm

Material:

Polycarbonate

Mounting Type:

Vertical/Horizontal, Screw

Number of Gangs:

1 Gang

Product Category:

Home Improvement & Commercial Supplies - Wall Plates & Covers

Product Type:

Home Improvement & Commercial Supplies - Wall Plates & Covers

Shape:

Rectangle

Size:

2-3/4 DEPTH IN, 69.85 DEPTH MM

Type:

1-Unit, Receptacle, Rectangular

Voltage:

146.6 Volt

Widths:

4 in

SoneparProductId:

SKU_US_25328309

Plastic In-Use Weatherproof Covers are easy to install and include adhered gasket, mounting screws, base, cover assembly, and inserts to meet the needs of a variety of applications. Features: Complies with 2020 NEC Article 314.15 for damp and wet locations; UL Certified for Type 3R outdoor enclosures; Meets requirements for cold impact testing: -60± F (-51± C); Heavy-duty UV stabilized polycarbonate cover, mounting base and inserts; 1?8\" (3 mm) thick, pre-adhered neoprene gasket with slits for mounting screws; Lockable hasp: All models accept up to 1?4\" (6 mm) dia shank, except WP3100C & WP3103C accept up to 1?8\" (3 mm) dia shank; Three inserts provided with all models that allow each model to meet multiple installations (up to 16 configurations); Max cord size: (2) #14 AWG or (1) #12 AWG; Mounts vertically or horizontally; Warranty: 1-year limited
