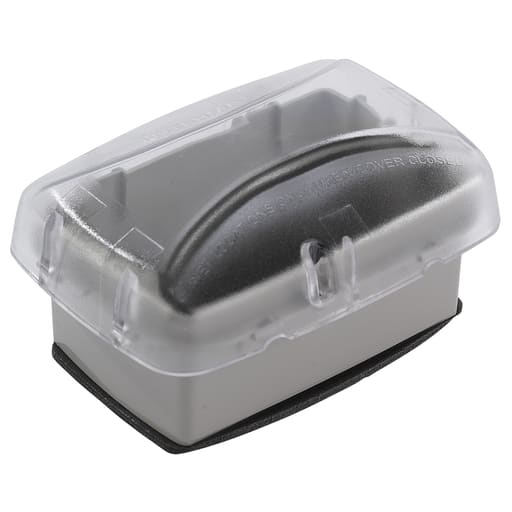

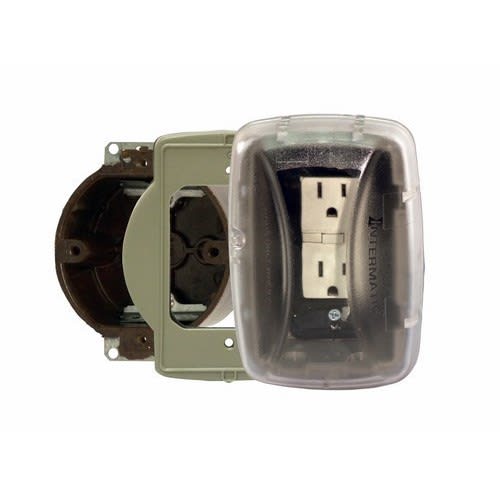

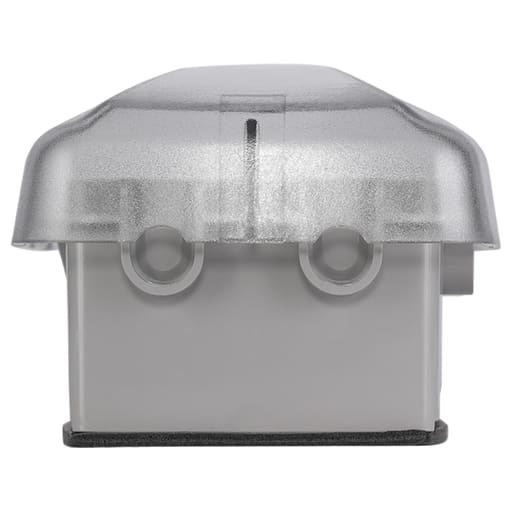

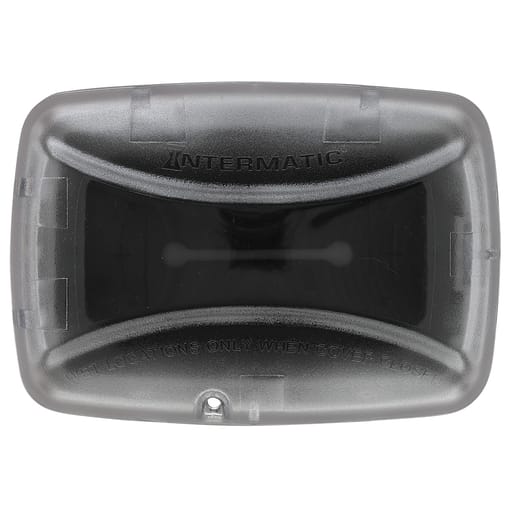

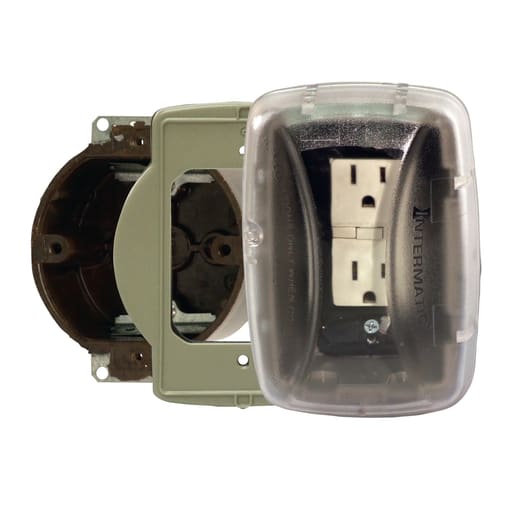

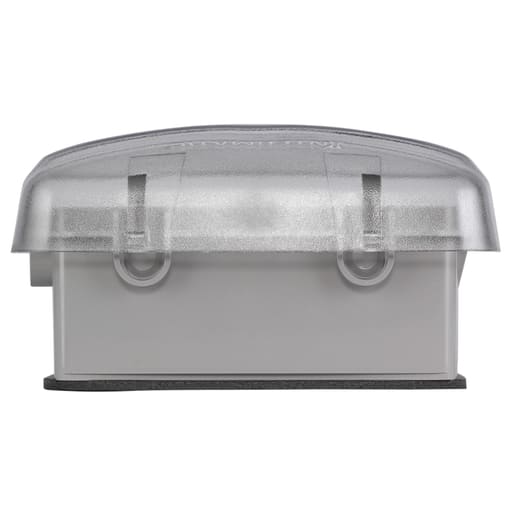

Intermatic, Inc - Intermatic WP3103C 1-Gang Horizontal/Vertical Hinge 2-3/4 Inch Receptacle Cover with Guard Insert

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 078275124721

  • Applications - Receptacle Protection

  • Catalog Number - WP3103C

  • Color - Clear

  • Construction - Heavy-Duty Polycarbonate

Packaging

  • 1 ea

EAN

00078275124721

Part #

133717

Catalog #

WP3103C

Commercial reference

WP3103C

12-Digit UPC:

078275124721

Applications:

Receptacle Protection

Catalog Number:

WP3103C

Color:

Clear

Construction:

Heavy-Duty Polycarbonate

Country of Origin:

Mexico

Depths:

2-3/4 Inch

ERP_productname:

INTM WP3103C WP3100C W/ADAPTER PLATE FOR 3/0 BOX.

Family Brand Name:

NA

Heights:

5-3/4 Inch

Material:

Polycarbonate

Mounting Type:

Horizontal,Vertical

Number of Gangs:

1 Gang

Shape:

Rectangle

Size:

2-3/4 DEPTH IN, 69.85 DEPTH MM

Type:

Weatherproof Receptacle Cover

Widths:

4 in

SoneparProductId:

SKU_US_25881183

Plastic In-Use Weatherproof Covers are easy to install and include adhered gasket, mounting screws, base, cover assembly and inserts to meet the needs of a variety of applications. Features: Complies with 2020 NEC Article 314.15 for damp and wet locations; UL Certified for Type 3R outdoor enclosures; Meets requirements for cold impact testing: -60± F (-51± C); Heavy-duty UV stabilized polycarbonate cover, mounting base and inserts; 1?8\" (3 mm) thick, pre-adhered neoprene gasket with slits for mounting screws; Lockable hasp: All models accept up to 1?4\" (6 mm) dia shank, except WP3100C & WP3103C accept up to 1?8\" (3 mm) dia shank; Three inserts provided with all models that allow each model to meet multiple installations (up to 16 configurations); Max cord size: (2) #14 AWG or (1) #12 AWG; Mounts vertically or horizontally; Warranty: 1-year limited
