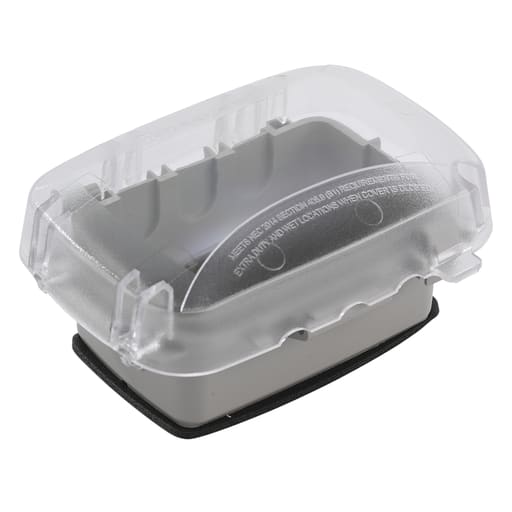

Intermatic, Inc - Intermatic WP5100C 1-Gang Vertical / Horizontal Extra Duty In-Use Receptacle Cover, 2-3/4" Deep - Clear

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 078275145290

  • Applications - Wet Location and Heavy Duty Application

  • Catalog Number - WP5100C

  • Color - Clear

  • Construction - Heavy-Duty Polycarbonate

Packaging

  • 1 ea

EAN

00078275145290

Part #

210116

Catalog #

WP5100C

Commercial reference

WP5100C

12-Digit UPC:

078275145290

Applications:

Wet Location and Heavy Duty Application

Catalog Number:

WP5100C

Color:

Clear

Construction:

Heavy-Duty Polycarbonate

Country of Origin:

Mexico

Depths:

2-3/4 Inch

ERP_productname:

INTM WP5100C WEATHER PROOF COVER

Family Brand Name:

Intermatic

Finish:

Plastic

Heights:

6.33 Inch

Length:

6-1/2 Inch

Material:

Polycarbonate

Mounting Type:

Vertical, Horizontal

Number of Gangs:

1 Gang

Product Category:

Home Improvement & Commercial Supplies - Wall Plates & Covers

Product Type:

Home Improvement & Commercial Supplies - Wall Plates & Covers

Shape:

Rectangle

Size:

2.75 DEPTH X 6.5 HEIGHT X 4.75 WIDTH IN, 69.85 DEPTH X 165.10 HEIGHT X 120.65 WIDTH MM

Type:

Rectangular, Receptacle

Widths:

4-3/4 in

SoneparProductId:

SKU_US_25753846

Plastic In-Use Weatherproof Covers are extra-duty rated and easy to install. Covers come with an adhered gasket, mounting screws, base, cover assembly, and inserts to meet the needs of a variety of applications. Features: Complies with 2020 NEC Article 406.9 (B)(1) for wet locations and extra-duty applications; CEC Article 26-702 Compliant; UL Certified for Type 3R outdoor enclosures; Meets requirements for cold impact testing: -60± F (-51± C); Heavy-duty UV stabilized polycarbonate cover, mounting base and inserts; 1?8\" (3 mm) thick, neoprene gasket with slits for mounting screws; Lockable hasp: All models accept up to 1?4\" (6 mm) dia shank; Impact rated: 12 lbf. impact test to ensure cover remains intact; Reinforced hinge pin designed to exceed 40 lbf. hinge hang/stress test; Warranty: 1-year limited
