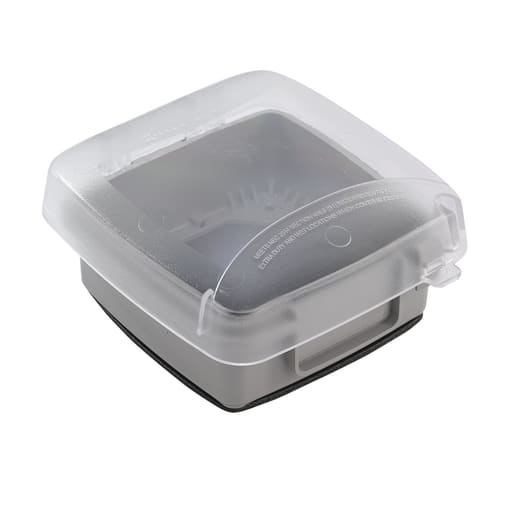

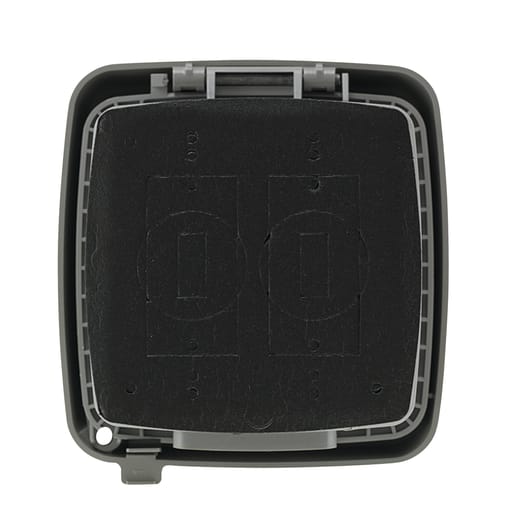

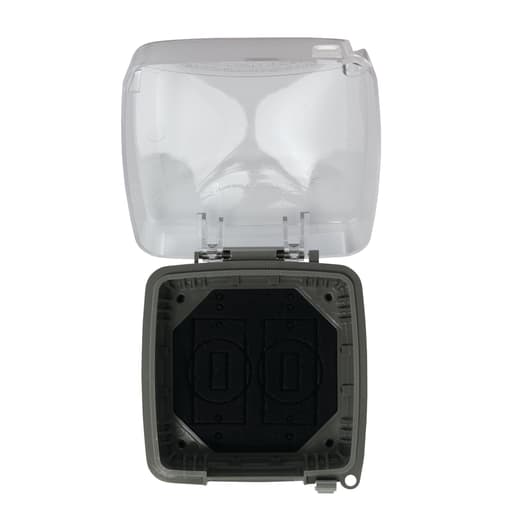

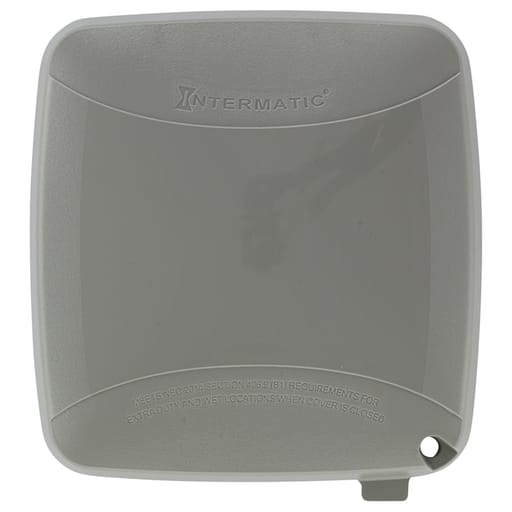

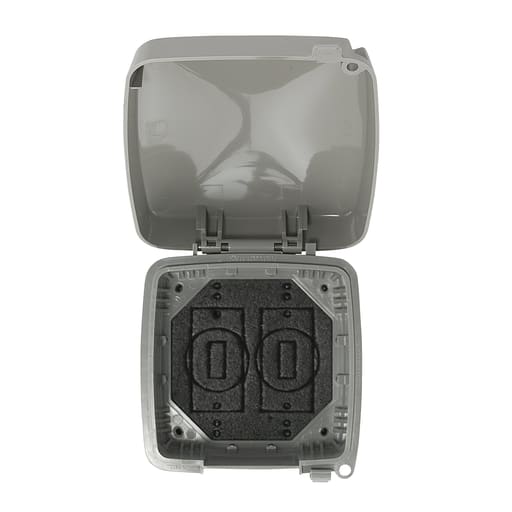

Intermatic, Inc - Intermatic WP5225C 2-Gang Vertical Hinge 2-3/4 Inch Extra Duty Clear Plastic Receptacle Cover with Guard Insert

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 078275145351

  • Applications - Wet Location and Heavy Duty Application

  • Catalog Number - WP5225C

  • Color - Clear

  • Construction - Heavy-Duty Polycarbonate

Packaging

  • 1 ea

EAN

00078275145351

Part #

138895

Catalog #

WP5225C

Commercial reference

WP5225C

12-Digit UPC:

078275145351

Applications:

Wet Location and Heavy Duty Application

Catalog Number:

WP5225C

Color:

Clear

Construction:

Heavy-Duty Polycarbonate

Country of Origin:

Mexico

Depths:

2-3/4 Inch

ERP_productname:

INTM WP5225C IN USE WEATHERPROOF COVER, DOUBLEGANG, VRT CONF, 2.75' CLEAR

Family Brand Name:

Intermatic

Heights:

6 Inch

Length:

6-1/2 Inch

Material:

Polycarbonate

Mounting Type:

Vertical

Number of Gangs:

2 Gang

Shape:

Rectangle

Size:

2.75 DEPTH X 6.5 HEIGHT X 6.5 WIDTH IN, 69.85 DEPTH X 165.10 HEIGHT X 165.10 WIDTH MM

Type:

Rectangular, Receptacle

Widths:

6-1/2 in

SoneparProductId:

SKU_US_25763658

Plastic In-Use Weatherproof Covers are extra-duty rated and easy to install. Covers come with an adhered gasket, mounting screws, base, cover assembly, and inserts to meet the needs of a variety of applications. Features: Complies with 2020 NEC Article 406.9 (B)(1) for wet locations and extra-duty applications; CEC Article 26-702 Compliant; UL Certified for Type 3R outdoor enclosures; Meets requirements for cold impact testing: -60± F (-51± C); Heavy-duty UV stabilized polycarbonate cover, mounting base and inserts; 1?8\" (3 mm) thick, pre-adhered neoprene gasket with slits for mounting screws; Lockable hasp: All models accept up to 1?4\" (6 mm) dia. shank; Impact rated: 12 lb. impact test to ensure cover remains intact; Reinforced hinge pin designed to exceed 40 lb. hinge hang/stress test; Warranty: 1-year limited
