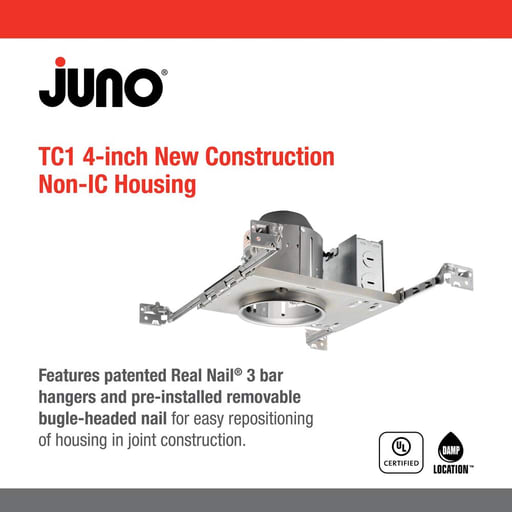

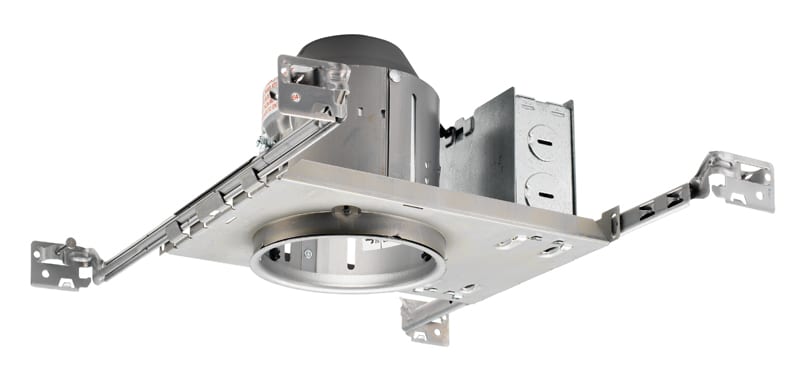

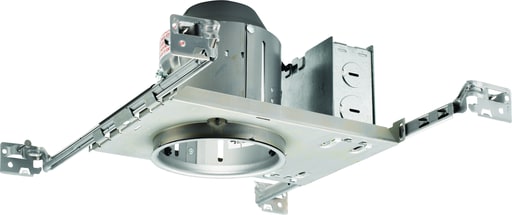

Juno Lighting - 4" Incandescent New Construction Non-IC Housing

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 661209700193

  • Aperture Size - 4 in

  • Applications - Residential

  • Catalog Number - TC1

  • Color - Unfinished

Packaging

  • 1 ea

EAN

00661209700193

Part #

211198

Catalog #

TC1

Commercial reference

TC1

12-Digit UPC:

661209700193

Aperture Size:

4 in

Applications:

Residential

Catalog Number:

TC1

Color:

Unfinished

Construction:

New Construction

Country of Origin:

Mexico,Mexico

ERP_productname:

JUNO TC1 4-IN MINI-RND TC HSG

Environment:

Indoor

Family Brand Name:

Acuity Brands Lighting

Fixture Type:

Incandescent Line Voltage

Heights:

5-3/8 Inch

Length:

12-1/8 Inch

Mounting Type:

Recessed

Shape:

Round

Sub Brand:

Contractor Select

Type:

Housing

Voltage:

120 Volt

Widths:

13.5 in

SoneparProductId:

SKU_US_26462529

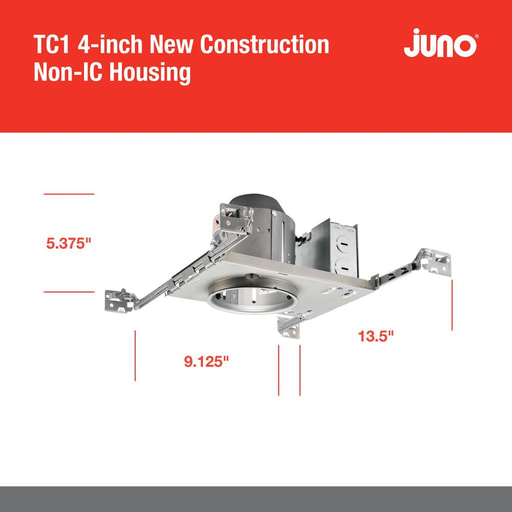

The non-IC housing is designed for use in non-insulated areas or where insulation is spaced at least 3 inches from the housing. Features: If installed where insulation is present, the insulation must be pulled back 3. from all sides of the TC housing.; RECOMMENDED LAMPS: TC1: R14/R16/R20/PAR16/PAR20; INCLUDES: Housings include medium base porcelain socket with nickel-plated copper screw shell; LISTINGS: UL Listed, CSA certified to US and Canadian standards, listed for damp locations; VOLTAGE: Standard 120 volts used in most residential applications; BAFFLE: Trim options include 4\" baffles, all in white finish; DESIGN FEATURE: Air-Loc housing stops infiltration and exfiltration of air, reducing heating and cooling costs; FEATURE: The IC1 is suitable to use for damp locations; WARRANTY: 1-year limited warranty; DIMENSIONS: Height 5 3/8-in. x Width 6-3/4-in. x Full Width 13-1/2-in. x Length 9-1/8-in. x Full Length 12-1/8-in. - Applications: Residential - Standards: CSA; UL
