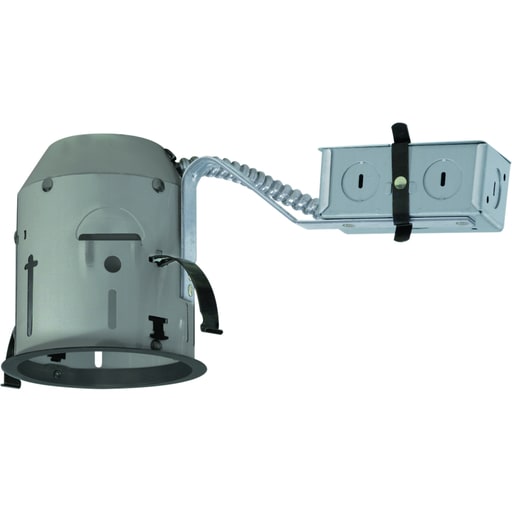

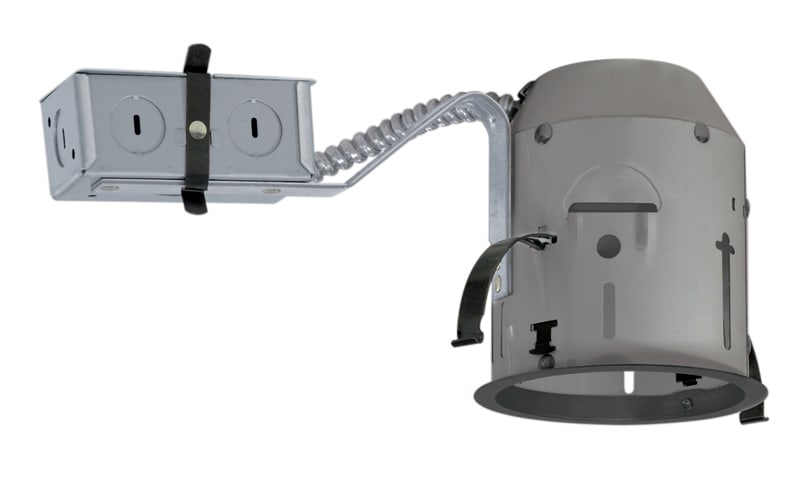

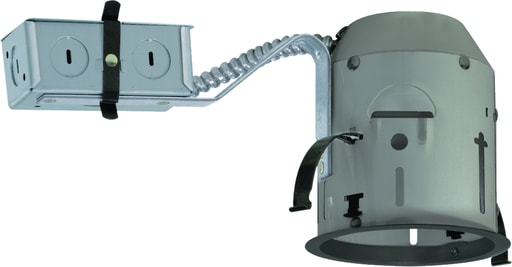

Juno Lighting - 4" Incandescent Remodel Non-IC Housing

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 661209017987

  • Aperture Size - 4 in

  • Applications - Residential

  • Catalog Number - TC1R

  • Construction - Remodel

Packaging

  • 1 ea

EAN

00661209017987

Part #

169898

Catalog #

TC1R

Commercial reference

TC1R

12-Digit UPC:

661209017987

Aperture Size:

4 in

Applications:

Residential

Catalog Number:

TC1R

Construction:

Remodel

Country of Origin:

Mexico,Mexico

ERP_productname:

JUNO TC1R 4IN TC REMODEL HSG

Environment:

Indoor

Family Brand Name:

Acuity Brands Lighting

Fixture Type:

Incandescent Line Voltage

Heights:

5-1/4 Inch

Length:

11-1/2 Inch

Mounting Type:

Recessed

Shape:

Round

Sub Brand:

Juno

Type:

Remodel

Voltage:

120 Volt

Widths:

4.75 in

SoneparProductId:

SKU_US_26687503

The non-IC remodel housing is ideal for applications where the backside of the ceiling is not accessible. The housing is designed to be installed in non-insulated areas or where insulation is spaced 3 inches away from the housing. Features: If installed where insulation is present, the insulation must be pulled back 3. from all sides of the TC housing.; TC1R, recommended lamps: R14/R16/R20/PAR16/PAR20; Housings include medium base porcelain socket with nickel-plated copper screw shell; UL Listed, CSA certified to US and Canadian standards, Listed for damp locations; Standard 120 volts used in most residential applications; Does not include light source; Air-Loc housing stops infiltration and exfiltration of air, reducing heating and cooling costs; Emergency battery back-up not included in this version; 1-year limited warranty; Dimensions: Height 5 1/4-in. x Width 6-3/4-in. x Full Width 13-1/2-in. x Length 9-1/8-in. x Full Length 12-1/8-in. - Applications: Residential - Standards: CSA; UL
