Juno Lighting - Lithonia EXRG-EL-M6 LED Exit Sign, Switchable Red / Green Lettering, 120-277V, Battery Backup, Thermoplastic White Housing

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 194994900696

  • Applications - Behavioral Health,Education,Government,Healthcare,Hospitality,House Of Worship,Offices & Banks,Retail

  • Catalog Number - EXRGELM6

  • Color - White

  • Color Temperature - Green,Red,Variable K

Packaging

  • 1 ea

EAN

00194994900696

Part #

498762

Catalog #

EXRGELM6

Commercial reference

EXRGELM6

12-Digit UPC:

194994900696

Applications:

Behavioral Health,Education,Government,Healthcare,Hospitality,House Of Worship,Offices & Banks,Retail

Catalog Number:

EXRGELM6

Color:

White

Color Temperature:

Green,Red,Variable K

Construction:

New Construction,Remodel

Country of Origin:

China,China

ERP_productname:

JUNO EXRGELM6 EMERGENCY EXIT SIGN

Environment:

Indoor

Family Brand Name:

Lithonia Lighting

Finish:

Textured

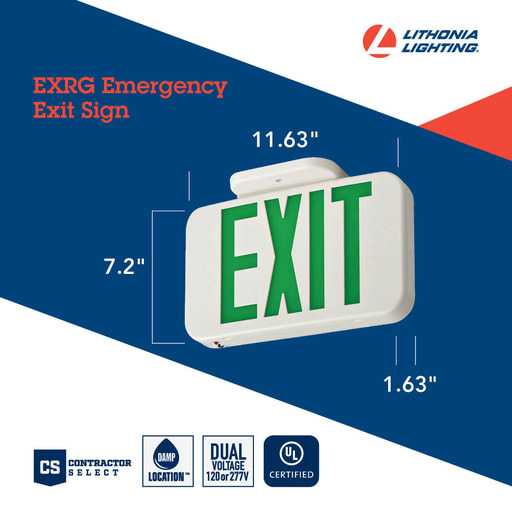

Heights:

7.13 Inch

Length:

11.63 Inch

Material:

Thermoplastic

Mounting Type:

Surface

Sub Brand:

Contractor Select

Type:

Emergency Exit Sign

Voltage:

120 Volt

Wattage:

0.3 Watt

Widths:

1.63 in

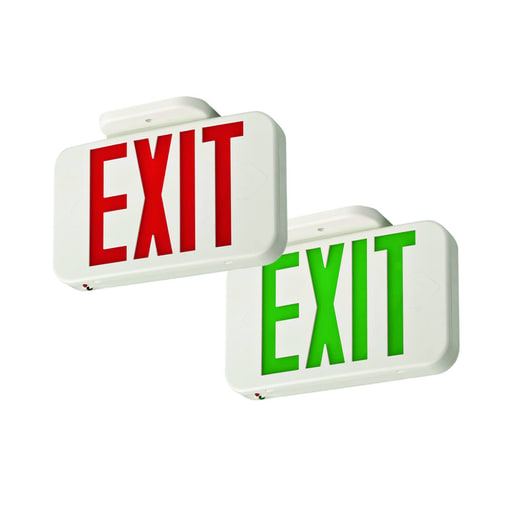

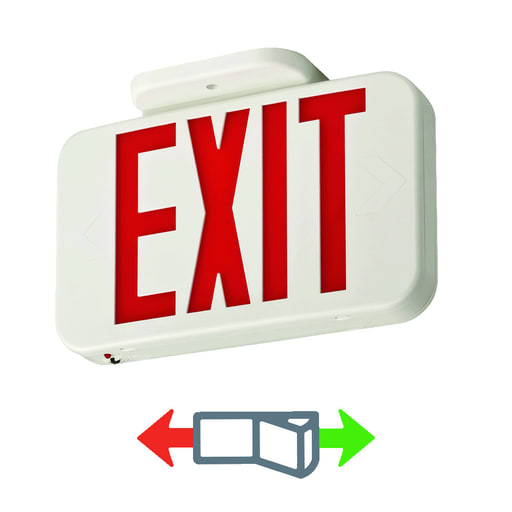

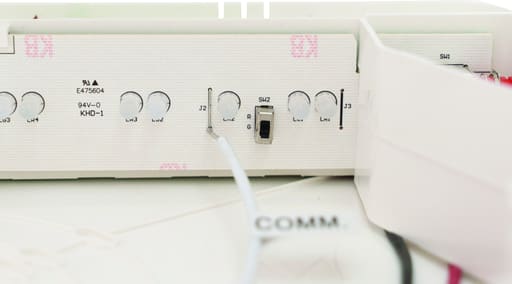

The Lithonia Lighting Basics™ EXRG Exit Sign is suitable for emergency signage applications such as stairways and hallways. It's low profile makes it ideal for safely illuminated the path of egress in small spaces and can be wall or ceiling mounted. The emergency power provides 90 minutes of illumination in the event of a power loss. Features: TECHNOLOGY: The EXRG LED Exit Sign has an internal switch for red or green color selection; RATINGS: UL Listed, Meets all applicable requirements for UL 924, NFPA 101 (current Life Safety Code), NFPA 70 (NEC), FCC Title 47, Part 15, Subpart B and OSHA, Indoor damp location 50±F to 104±F (10±C to 40±C) listed; VOLTAGE AND MOUNTING: Dual-voltage input 120V or 277V AC. Top, side and back mount. Mounting pattern on canopy (top and side mount) and back plate (back mount) fits most standard size junction boxes.; VOLTAGE: Dual-voltage input 120V or 277V AC (60 Hz); HOURS OF LIFE: The typical life of the LED lamp is 10 years; DESIGN FEATURES: Offered in the white thermoplastic housing, the EXRG has a classic design with updated features, this fully assembled single-face exit ships standard with an extra faceplate with red and green panel inserts.; BATTERY: 3.6V Nickel Metal Hydride Battery; WARRANTY: 2-year limited warranty; DIMENSIONS: (Length x Depth x Height): 11.63in x 1.63in x 7.2in - Applications: Behavioral Health; Education; Government; Healthcare; Hospitality; House of Worship; Offices & Banks; Retail - Standards: NFPA 101; NFPA 70; ULCA Title 20
