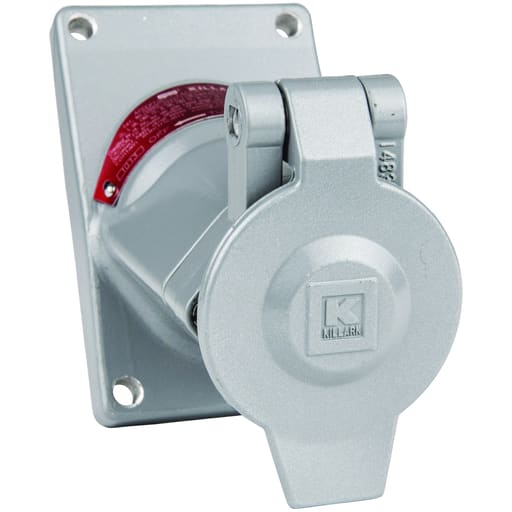

Killark - HCI UGR0-20231QW ACCEPTOR RECPT, 20

CopyCopy
Killark - HCI UGR0-20231QW ACCEPTOR RECPT, 20

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783936125862

  • Amperage - 20 Amp

  • Catalog Number - UGR0-20231QW

  • Country of Origin - USA

  • ERP_productname - KLRK UGR0-20231QW ACCEPTOR RECPT 20A 125V QUICK-WIRE

Packaging

  • 1 ea

EAN

00783936125862

Part #

220444

Catalog #

UGR0-20231QW

Commercial reference

UGR0-20231QW

12-Digit UPC:

783936125862

Amperage:

20 Amp

Catalog Number:

UGR0-20231QW

Country of Origin:

USA

ERP_productname:

KLRK UGR0-20231QW ACCEPTOR RECPT 20A 125V QUICK-WIRE

Family Brand Name:

Killark Electric

Heights:

4-1/4 Inch

Length:

6-1/4 Inch

Material:

Aluminum

NEMA Size:

3,7,9

Number of Poles:

2 Pole

Number of Wires:

3 Wire

Sub Brand:

Killark

Voltage:

125 Volt

Widths:

5.9 in

SoneparProductId:

SKU_US_31630548

20A 125V Quick-Wire Acceptor Receptacle Features: Factory sealed chamber in UGR receptacle contains switch.s arcing components.; Spring loaded receptacle cover closes when plug is removed.; Copper-free aluminum (less than 4/10 of 1%) alloy resists corrosion; Electrostatically applied and baked powder epoxy/polyester finish; ACCEPTOR® plugs conform to NEMA configurations, while it's .turn to engage. feature locks in plug and can be used to prevent accidental disengagement of critical equipment.; Plugs for use with type S/SO/ST/STO heavy duty cord.; The ACCEPTOR® UGP-QW / UGR-QW Plug and Receptacle system, with its unique patented design, is interchangeable with other NEMA bladed type explosion-proof and dust ignition proof devices. Plugs and receptacles may be used where bladed devices are needed in locations made hazardous by the presence of flammable gases or vapors, combustible dusts or easily ignitable fibers and flyings. Quick-Wire terminal construction allows for easier installation than traditional methods, allowing for labor savings and higher customer satisfaction. Plug can serve to provide power for portable equipment used in both hazardous and non-hazardous areas. Factory sealed construction specifies that no additional external seals are required (except in Group B applications).
