Killark - HCI VSQ6034FS 60A 3W4P FACTORY SEAL

CopyCopy
Killark - HCI VSQ6034FS 60A 3W4P FACTORY SEAL

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783936833385

  • Amperage - 60 Amp

  • Catalog Number - VSQ6034FS

  • Country of Origin - USA

  • ERP_productname - KLRK VSQ6034FS 60A 3W4P FACTORY SEALED INTERLCK RECEPT

Packaging

  • 1 ea

EAN

00783936833385

Part #

358208

Catalog #

VSQ6034FS

Commercial reference

VSQ6034FS

12-Digit UPC:

783936833385

Amperage:

60 Amp

Catalog Number:

VSQ6034FS

Country of Origin:

USA

ERP_productname:

KLRK VSQ6034FS 60A 3W4P FACTORY SEALED INTERLCK RECEPT

Family Brand Name:

Killark Electric

Material:

Aluminum

Number of Poles:

3 Pole

Number of Wires:

4 Wire

Sub Brand:

Killark

SoneparProductId:

SKU_US_585660568

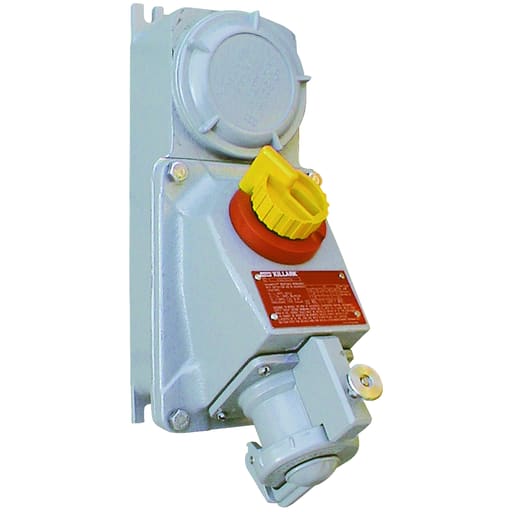

60A 3W4P VSQ Factory Sealed Hazardous Interlocked Receptacle Features: Factory Sealed Construction; Compact size and footprint; Plug Interlock Mechanism for Dead-Front construction. Switch cannot be turned .ON. without fully inserted plug. Plug cannot be removed with switch in .ON. position; Factory Wired Receptacle (Load Side); .Off. position is padlockable for maintenance safety; Auxiliary Contact (late-make early-break) rated 10 Amp, 1/3 HP at 125/250 VAC.; Adjustable mounting lugs; Feed-through construction; Horsepower-rated internal switch; Killark VersaMate® VSQ Series of Switched and Interlocked receptacles provides for a receptacle solution in hazardous location areas. NEMA 4X weather-ingress ratings allow for indoor and outdoor use, and copper-free aluminum construction with electrostatically applied polyester/epoxy coating ensure the ultimate in corrosive resistance. Plug Interlock Mechanism for Dead-Front construction, ensuring that the switch cannot be turned on without a fully inserted plug (plug cannot be removed with switch in .ON.position, preventing possibly damaging arcs and sparks).
