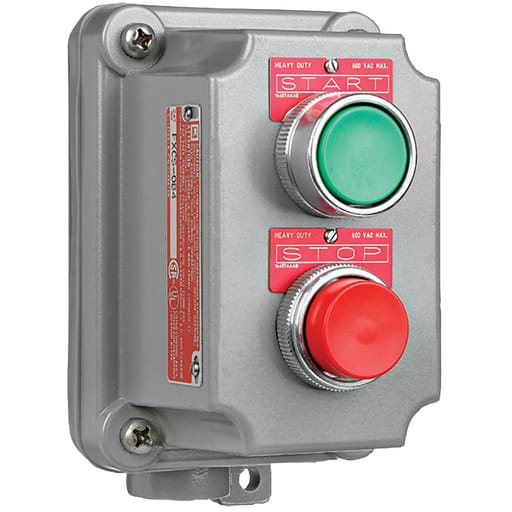

Killark - Killark FXCS-0B4U FXCS Series - Aluminum Momentary Contact Double Push Button Cover With Device - Factory Sealed - Green Button With "Start" Nameplate - Red Button With "Stop" Nameplate - 2NO/2NC Contact Rating

CopyCopy
Killark - Killark FXCS-0B4U FXCS Series - Aluminum Momentary Contact Double Push Button Cover With Device - Factory Sealed - Green Button With "Start" Nameplate - Red Button With "Stop" Nameplate - 2NO/2NC Contact Rating

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783936200484

  • Actuator - Double Pushbutton

  • Amperage - 10 Amp

  • Applications - SEAL-X Series is used to prevent the igniting of external hazardous atmospheres by the enclosed arcing devices in such areas as: hazardous locations due to the presence of flammable gases or vapors, combustible dusts or easily ignitable fibers or flyings

  • Catalog Number - FXCS-0B4U

Packaging

  • 1 ea

EAN

00783936200484

Part #

248374

Catalog #

FXCS-0B4U

Commercial reference

FXCS-0B4U

12-Digit UPC:

783936200484

Actuator:

Double Pushbutton

Amperage:

10 Amp

Applications:

SEAL-X Series is used to prevent the igniting of external hazardous atmospheres by the enclosed arcing devices in such areas as: hazardous locations due to the presence of flammable gases or vapors, combustible dusts or easily ignitable fibers or flyings

Catalog Number:

FXCS-0B4U

Color:

Green,Red

Country of Origin:

USA

ERP_productname:

KLRK FXCS-0B4U GRN/RED PB W/ U CONT

Family Brand Name:

Hubbell Incorporated

Heights:

4-1/8 Inch

Length:

6-5/8 Inch

Material:

Aluminum

NEMA Size:

3

Number of Poles:

2-2 Pole

Size:

6.625 in x 6.25 in x 4.125 in

Sub Brand:

Killark

Type:

Aluminum Factory Sealed Cover With Two Push Buttons

Voltage:

600 VAC

Widths:

6.25 in

SoneparProductId:

SKU_US_31298780

FXCS Series - Aluminum Momentary Contact Double Push Button Cover With Device - Factory Sealed - Green Button With "Start" Nameplate - Red Button With "Stop" Nameplate - 2NO/2NC Contact Rating Features: Eliminates external sealing requirements.; Lower installation cost.; NEMA 3 weatherproof.; Color coded wiring with more wiring space for easier field installation.; Stainless steel captive screws for cover assembly.; Lockout accessory available must be factory installed.; Ground boss for grounding in the splice box.; Device bodies and covers are copper-free cast aluminum alloy.; Push button, selector switches and pilot light bodies are copper-free aluminum.; Operating shaft in both push buttons and selector switches are stainless steel.; Killark SEAL-X Series Factory Sealed Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified.
