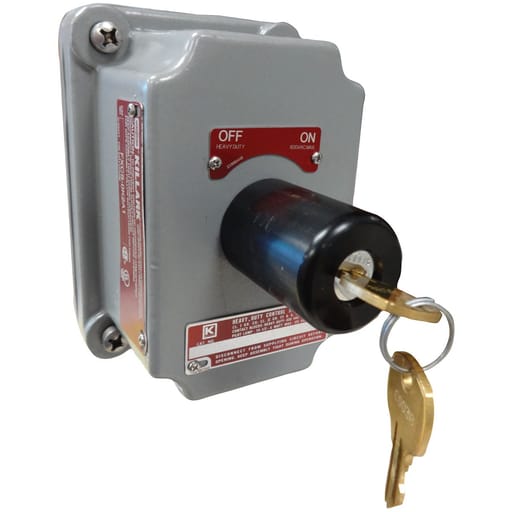

Killark - Killark FXCS-0K2A1 FXCS Series - Aluminum Maintained Contact 2-Position Keyed Selector Switch Cover With Device - Factory Sealed 1NO/1NC Contact

CopyCopy
Killark - Killark FXCS-0K2A1 FXCS Series - Aluminum Maintained Contact 2-Position Keyed Selector Switch Cover With Device - Factory Sealed 1NO/1NC Contact

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783936200613

  • Actuator - 2-position key selector switch

  • Amperage - 10 Amp

  • Applications - SEAL-X Series is used to prevent the igniting of external hazardous atmospheres by the enclosed arcing devices in such areas as: hazardous locations due to the presence of flammable gases or vapors, combustible dusts or easily ignitable fibers or flyings;

  • Catalog Number - FXCS-0K2A1

Packaging

  • 1 ea

EAN

00783936200613

Part #

405656

Catalog #

FXCS-0K2A1

Commercial reference

FXCS-0K2A1

12-Digit UPC:

783936200613

Actuator:

2-position key selector switch

Amperage:

10 Amp

Applications:

SEAL-X Series is used to prevent the igniting of external hazardous atmospheres by the enclosed arcing devices in such areas as: hazardous locations due to the presence of flammable gases or vapors, combustible dusts or easily ignitable fibers or flyings;

Catalog Number:

FXCS-0K2A1

Color:

Black

Country of Origin:

USA

ERP_productname:

KLRK FXCS-0K2A1 CVR W/ DEVICE 2POS KEYED 1NO/1NC MAINT

Family Brand Name:

Hubbell Incorporated

Heights:

4-3/4 Inch

Length:

6-3/4 Inch

Material:

Aluminum

NEMA Size:

3

Number of Poles:

1-1 Pole

Size:

5-5/16" H x 3-11/16" W x 2.59" D

Sub Brand:

Killark

Type:

Aluminum factory sealed cover with 2-position key selector switch

Voltage:

600 VAC

Widths:

6.125 in

SoneparProductId:

SKU_US_30897413

FXCS Series - Aluminum Maintained Contact 2-Position Keyed Selector Switch Cover With Device - Factory Sealed 1NO/1NC Contact Features: Eliminates external sealing requirements.; Lower installation cost.; NEMA 3 weatherproof.; Color coded wiring with more wiring space for easier field installation.; Stainless steel captive screws for cover assembly.; Lockout accessory available must be factory installed.; Ground boss for grounding in the splice box.; Device bodies and covers are copper-free cast aluminum alloy.; Push button, selector switches and pilot light bodies are copper-free aluminum.; Operating shaft in both push buttons and selector switches are stainless steel.; Killark SEAL-X Series Factory Sealed Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified.
