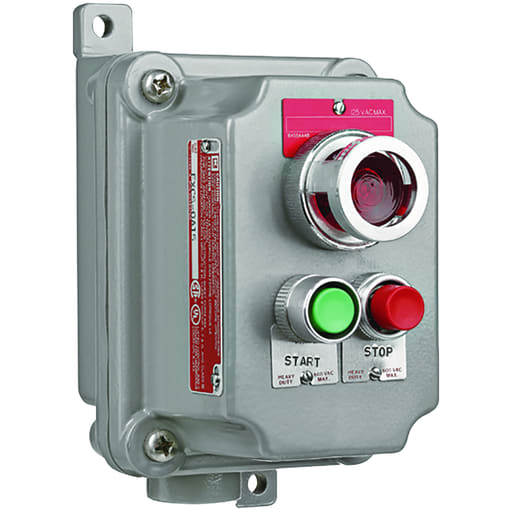

Killark - Killark FXCS-2A15 FXCS Momentary Contact, 2 Mini Push Button- 1 Pilot Light- Red Lens- Cover and Dead-End Box, 3/4" Hub
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783936201122
Actuator - Pilot light and momentary push buttons
Amperage - 10 Amp
Applications - SEAL-X Series is used to prevent the igniting of external hazardous atmospheres by the enclosed arcing devices in such areas as: hazardous locations due to the presence of flammable gases or vapors, combustible dusts or easily ignitable fibers or flyings;
Catalog Number - FXCS-2A15
Packaging
1 ea
EAN
00783936201122
Part #
344286
Catalog #
FXCS-2A15
Commercial reference
FXCS-2A15
12-Digit UPC:
783936201122
Actuator:
Pilot light and momentary push buttons
Amperage:
10 Amp
Applications:
SEAL-X Series is used to prevent the igniting of external hazardous atmospheres by the enclosed arcing devices in such areas as: hazardous locations due to the presence of flammable gases or vapors, combustible dusts or easily ignitable fibers or flyings;
Catalog Number:
FXCS-2A15
Color:
Green,Red Light,Red P.B.
Country of Origin:
USA
ERP_productname:
KLRK FXCS-2A15 BOX CVR 2PB 1PL 3/4" DEAD RL
Enclosure:
Aluminum factory sealed dead-end splice box
Family Brand Name:
Hubbell Incorporated
Heights:
4.38 Inch
Length:
6.63 Inch
NEMA Size:
3
Number of Poles:
2-2 Pole
Size:
6-13/16" H x 3-11/16" W x 4-13/32" D
Sub Brand:
Killark
Type:
Aluminum factory sealed box and cover with pilot light and two mini push buttons
Voltage:
120/600 VAC
Wattage:
3 Watt
Widths:
6 in
SoneparProductId:
SKU_US_31933469
