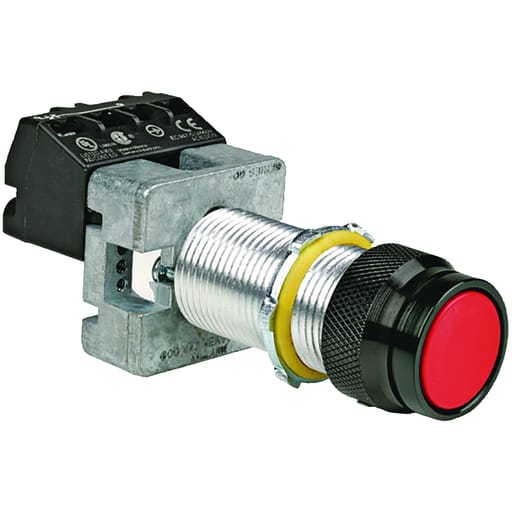

Killark - Killark GO1-RX2B N34 G Series - Aluminum Long Momentary Contact Single Push Button Operator -Red Button With "Start"/"Stop" Nameplate - 1NC Contact Rating

CopyCopy
Killark - Killark GO1-RX2B N34 G Series - Aluminum Long Momentary Contact Single Push Button Operator -Red Button With "Start"/"Stop" Nameplate - 1NC Contact Rating

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783936221502

  • Actuator - Momentary Push Button

  • Amperage - 10 Amp

  • Applications - Designed for Use in Hazardous Locations when Installed in Suitable Enclosures

  • Catalog Number - GO1-RX2B N34

Packaging

  • 1 ea

EAN

00783936221502

Part #

291315

Catalog #

GO1-RX2B-N34

Commercial reference

GO1-RX2B-N34

12-Digit UPC:

783936221502

Actuator:

Momentary Push Button

Amperage:

10 Amp

Applications:

Designed for Use in Hazardous Locations when Installed in Suitable Enclosures

Catalog Number:

GO1-RX2B N34

Color:

Red

Country of Origin:

USA

ERP_productname:

KLRK GO1-RX2B-N34 PUSHBUTTON, MOM LONG RED 1NC CONTACT

Enclosure Type:

NEMA 3, 4, 4X

Family Brand Name:

Killark Electric

Heights:

1-3/4 Inch

Length:

2-1/4 Inch

NEMA Size:

3,4,4X

Number of Poles:

1 Pole

Size:

1-1/4" H x 1-1/4" W x 4-5/16" L

Sub Brand:

Killark

Type:

1-Pole, Long Style, Single

Voltage:

600 VAC

Widths:

6.625 in

SoneparProductId:

SKU_US_73031028

G Series - Aluminum Long Momentary Contact Single Push Button Operator -Red Button With "Start"/"Stop" Nameplate - 1NC Contact Rating Features: Operators are all aluminum except for certain movable parts which are stainless steel.; All other parts such as screws are either stainless steel or plated steel.; Threaded bodies are all 3/4.-14 NPSM thread.; Control stations can be grouped into a single assembly thus reducing installation time and cost.; Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified
