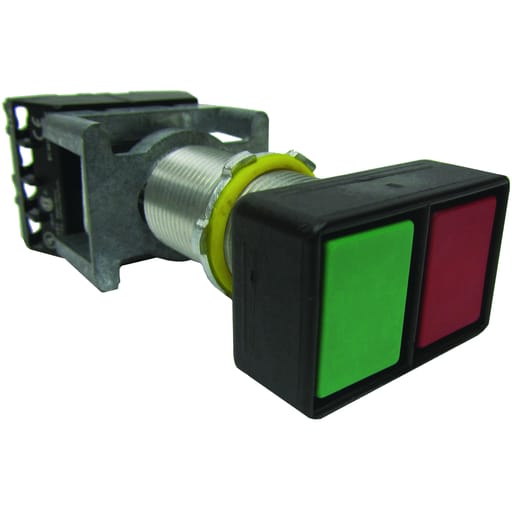

Killark - Killark GOL2GR12 G Series - Aluminum Extended Momentary Contact Double Push Button Operator - Green And Red Buttons With "Start - Stop"/Blank Nameplate -1NO/1NC Contact Rating

CopyCopy
Killark - Killark GOL2GR12 G Series - Aluminum Extended Momentary Contact Double Push Button Operator - Green And Red Buttons With "Start - Stop"/Blank Nameplate -1NO/1NC Contact Rating

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783936226101

  • Actuator - Momentary push buttons

  • Amperage - 10 Amp

  • Applications - G Series custom control panel operators are designed for use in hazardous locations when installed in suitable enclosures such as B7E, EXB, XJB, DB, SWB, and GCS Series boxes and B7, Y7 starter enclosures.

  • Catalog Number - GOL2GR12

Packaging

  • 1 ea

EAN

00783936226101

Part #

291310

Catalog #

GOL2GR12

Commercial reference

GOL2GR12

12-Digit UPC:

783936226101

Actuator:

Momentary push buttons

Amperage:

10 Amp

Applications:

G Series custom control panel operators are designed for use in hazardous locations when installed in suitable enclosures such as B7E, EXB, XJB, DB, SWB, and GCS Series boxes and B7, Y7 starter enclosures.

Catalog Number:

GOL2GR12

Country of Origin:

USA

ERP_productname:

KLRK GOL2GR12 PUSHBUTTON, DBL MOM GRN/RED, 1NO/1NC

Family Brand Name:

Hubbell Incorporated

Heights:

2 Inch

Length:

6-3/4 Inch

NEMA Size:

3,4,4X

Number of Poles:

2-2 Pole

Size:

1-5/16" H x 2" W x 5-3/16" L

Sub Brand:

Killark

Type:

Non-Reversing

Voltage:

600 VAC

Widths:

2.25 in

SoneparProductId:

SKU_US_32731643

G Series - Aluminum Extended Momentary Contact Double Push Button Operator - Green And Red Buttons With "Start - Stop"/Blank Nameplate -1NO/1NC Contact Rating Features: Operators are all aluminum except for certain movable parts which are stainless steel.; All other parts such as screws are either stainless steel or plated steel.; Threaded bodies are all 3/4.-14 NPSM thread.; Control stations can be grouped into a single assembly thus reducing installation time and cost.; Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified
