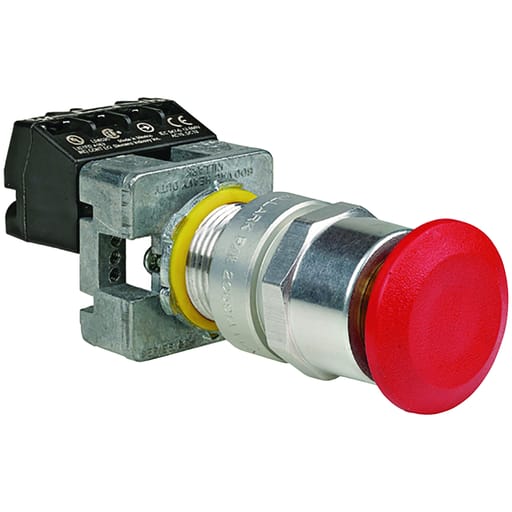

Killark - Killark GOM21-RM3C G Series - Aluminum Short Momentary Contact Single Push/Pull Button Operator - Red Mushroom Button With Blank Nameplate - 1NO/1NC Contact Rating

CopyCopy
Killark - Killark GOM21-RM3C G Series - Aluminum Short Momentary Contact Single Push/Pull Button Operator - Red Mushroom Button With Blank Nameplate - 1NO/1NC Contact Rating

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783936224954

  • Actuator - Maintained push button

  • Amperage - 10 Amp

  • Applications - G Series custom control panel operators are designed for use in hazardous locations when installed in suitable enclosures such as B7E, EXB, XJB, DB, SWB, and GCS Series boxes and B7, Y7 starter enclosures.

  • Catalog Number - GOM21-RM3C

Packaging

  • 1 ea

EAN

00783936224954

Part #

110439

Catalog #

GOM21-RM3C

Commercial reference

GOM21-RM3C

12-Digit UPC:

783936224954

Actuator:

Maintained push button

Amperage:

10 Amp

Applications:

G Series custom control panel operators are designed for use in hazardous locations when installed in suitable enclosures such as B7E, EXB, XJB, DB, SWB, and GCS Series boxes and B7, Y7 starter enclosures.

Catalog Number:

GOM21-RM3C

Country of Origin:

Mexico

ERP_productname:

KLRK GOM21-RM3C RED MAINT SHORT PSH-PULL NO/NC

Family Brand Name:

Hubbell Incorporated

Heights:

2 Inch

Length:

6-3/4 Inch

Number of Poles:

1-1 Pole

Sub Brand:

Killark

Type:

Non-Reversing

Voltage:

600 VAC

Widths:

2.25 in

SoneparProductId:

SKU_US_30153610

G Series - Aluminum Short Momentary Contact Single Push/Pull Button Operator - Red Mushroom Button With Blank Nameplate - 1NO/1NC Contact Rating Features: Operators are all aluminum except for certain movable parts which are stainless steel.; All other parts such as screws are either stainless steel or plated steel.; Threaded bodies are all 3/4.-14 NPSM thread.; Control stations can be grouped into a single assembly thus reducing installation time and cost.; Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified
