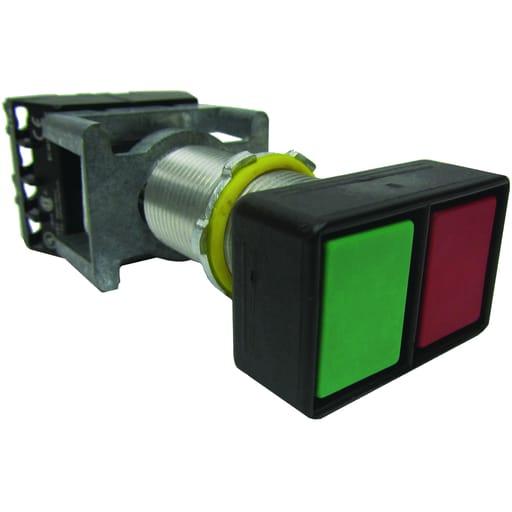

Killark - Killark GOR11-GR6D N34 G Series - Aluminum Long Maintained Contact Double Push Button Operator- Green And Red Buttons With "Start - Stop"/Blank Nameplate - 2NO Contact Rating

CopyCopy
Killark - Killark GOR11-GR6D N34 G Series - Aluminum Long Maintained Contact Double Push Button Operator- Green And Red Buttons With "Start - Stop"/Blank Nameplate - 2NO Contact Rating

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783936224633

  • Actuator - Maintained push buttons

  • Amperage - 10 Amp

  • Applications - G Series custom control panel operators are designed for use in hazardous locations when installed in suitable enclosures such as B7E, EXB, XJB, DB, SWB, and GCS Series boxes and B7, Y7 starter enclosures.

  • Catalog Number - GOR11-GR6D N34

Packaging

  • 1 ea

EAN

00783936224633

Part #

147737

Catalog #

GOR11-GR6DN34

Commercial reference

GOR11-GR6DN34

12-Digit UPC:

783936224633

Actuator:

Maintained push buttons

Amperage:

10 Amp

Applications:

G Series custom control panel operators are designed for use in hazardous locations when installed in suitable enclosures such as B7E, EXB, XJB, DB, SWB, and GCS Series boxes and B7, Y7 starter enclosures.

Catalog Number:

GOR11-GR6D N34

Country of Origin:

USA

ERP_productname:

KLRK GOR11-GR6DN34 BL PB EXTD GRN/RED 2NO CONT

Family Brand Name:

Hubbell Incorporated

Heights:

2 Inch

Length:

6.34 Inch

NEMA Size:

3,4,4X

Number of Poles:

2-2 Pole

Size:

1-1/4" H x 1-15/16" W x 4-19/32" L

Sub Brand:

Killark

Type:

Non-Reversing

Voltage:

600 VAC

Widths:

2.25 in

SoneparProductId:

SKU_US_73932792

G Series - Aluminum Long Maintained Contact Double Push Button Operator- Green And Red Buttons With "Start - Stop"/Blank Nameplate - 2NO Contact Rating Features: Operators are all aluminum except for certain movable parts which are stainless steel.; All other parts such as screws are either stainless steel or plated steel.; Threaded bodies are all 3/4.-14 NPSM thread.; Control stations can be grouped into a single assembly thus reducing installation time and cost.; Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified
