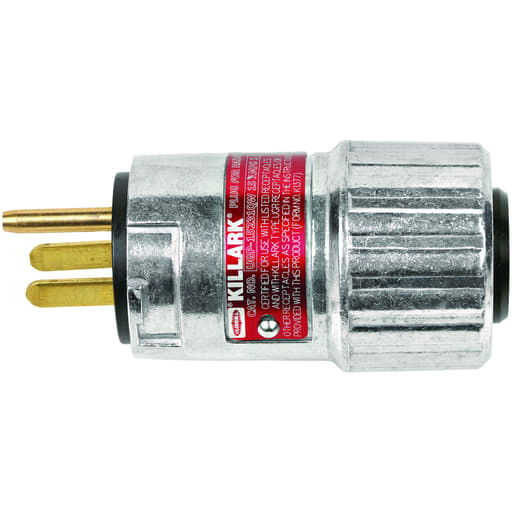

Killark - Killark UGP-20231QW UGP Series - Aluminum 20 Amp 125VAC Interchangeable Blade Style Plug With Quick Wiring - NEMA Configuration 5-20P

CopyCopy
Killark - Killark UGP-20231QW UGP Series - Aluminum 20 Amp 125VAC Interchangeable Blade Style Plug With Quick Wiring - NEMA Configuration 5-20P

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783936076669

  • Amperage - 20 Amp

  • Applications - For Petroleum Refineries, Chemical Plants, Wet/Damp Areas, Corrosive Environments, Petroleum Plants, Grain Elevators/Feed Mills, Flour and Feed Mills, and Indoor or Outdoor Locations

  • Catalog Number - UGP-20231QW

  • Color - Gray

Packaging

  • 1 ea

EAN

00783936076669

Part #

201507

Catalog #

UGP-20231QW

Commercial reference

UGP-20231QW

12-Digit UPC:

783936076669

Amperage:

20 Amp

Applications:

For Petroleum Refineries, Chemical Plants, Wet/Damp Areas, Corrosive Environments, Petroleum Plants, Grain Elevators/Feed Mills, Flour and Feed Mills, and Indoor or Outdoor Locations

Catalog Number:

UGP-20231QW

Color:

Gray

Conductor Size:

10, 12, or 14 AWG

Country of Origin:

USA

ERP_productname:

KLRK UGP-20231QW 20A PLUG 5-20P QUICK WIRE

Family Brand Name:

Killark Electric

Heights:

1-7/8 Inch

Length:

6-5/8 Inch

Material:

Aluminum

NEMA Size:

3,4,4X

Number of Poles:

2 Pole

Number of Wires:

2 Wire

Size:

1.69" H x 1.69" W x 3.36" L

Sub Brand:

Acceptor®

Type:

Interchangeable

Voltage:

125 VAC

Widths:

2.375 in

Wire Size:

10 AWG

SoneparProductId:

SKU_US_26900105

UGP Series - Aluminum 20 Amp 125VAC Interchangeable Blade Style Plug With Quick Wiring - NEMA Configuration 5-20P Features: Factory sealed chamber in UGR receptacle contains switch.s arcing components.; Spring loaded receptacle cover closes when plug is removed.; Copper-free aluminum (less than 4/10 of 1%) alloy resists corrosion; Electrostatically applied and baked powder epoxy/polyester finish; ACCEPTOR® plugs conform to NEMA configurations, while it's .turn to engage. feature locks in plug and can be used to prevent accidental disengagement of critical equipment.; Plugs for use with type S/SO/ST/STO heavy duty cord.; ACCEPTOR plugs conform to NEMA configurations and can be used with standard receptacles in non-hazardous areas to maximize equipment utilization. The system's \"turn to engage\" feature locks in plug and can be used to prevent accidental disengagement of cr
