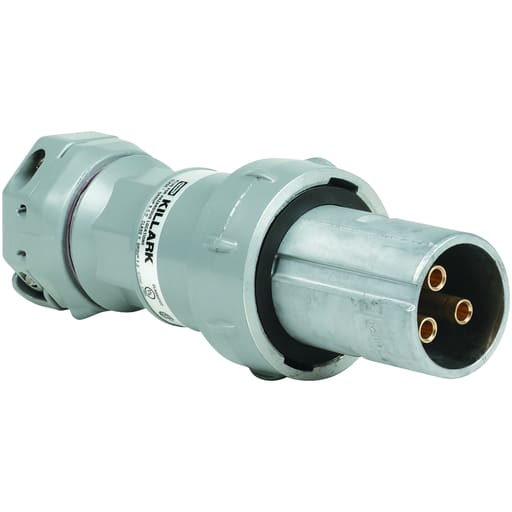

Killark - Killark VP10487 100A 3 Pole 4 Wire Plug Assembly

CopyCopy
Killark - Killark VP10487 100A 3 Pole 4 Wire Plug Assembly

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783936834764

  • Amperage - 100 Amp

  • Applications - For Industrial Applications such as Pulp and Paper Mills, Electrical Power Plants, Petrochemical Plants, Wastewater Treatment, Marine, Docks, Ports, Construction Sites, Breweries, Re?neries, Chemical Plants, Grain Facilities, Textile Manufacturing, Food Processing Facilities

  • Catalog Number - VP10487

  • Color - Gray

Packaging

  • 1 ea

EAN

00783936834764

Part #

345731

Catalog #

VP10487

Commercial reference

VP10487

12-Digit UPC:

783936834764

Amperage:

100 Amp

Applications:

For Industrial Applications such as Pulp and Paper Mills, Electrical Power Plants, Petrochemical Plants, Wastewater Treatment, Marine, Docks, Ports, Construction Sites, Breweries, Re?neries, Chemical Plants, Grain Facilities, Textile Manufacturing, Food Processing Facilities

Catalog Number:

VP10487

Color:

Gray

Conductor Size:

4-2 AWG

Country of Origin:

USA

ERP_productname:

KLRK VP10487 100A 3W4P PLUG ASSY.

Family Brand Name:

Killark Electric

Finish:

Baked Epoxy

Heights:

4-1/4 Inch

Length:

10.87 Inch

Material:

Aluminum

Number of Poles:

4 Pole

Number of Wires:

3 Wire

Size:

4-1/4" H x 4-1/4" W x 10-7/8" L

Sub Brand:

Killark

Type:

Aluminum NEMA 4X metallic plug

Voltage:

600 VAC, 250 VDC

Widths:

4.25 in

Wire Size:

4-2 AWG

SoneparProductId:

SKU_US_26899953

100A 3 Pole 4 Wire Plug Assembly Features: Feature an octagonal body style, ensuring a sure grip when connecting or disconnecting.; Insulators have high mechanical and dielectric strength.; .Increased Safety. type box terminals with gripper ribs securely clamp around conductors.; Funneled conductor entry chambers lead all properly stripped conductors into terminals simultaneously.; Type 4X rating when inserted into VersaMate receptacle and locking ring is tightened.; Includes suitability for Type P marine cable.; VersaMate® metallic pin & sleeve plugs, receptacles, and in-line connectors are designed for heavy duty industrial use. These devices supply power to both fixed and portable electrical equipment including pumps, generators, welders, vacuums, blowers and similar apparatus. Suitable for indoor and outodoor use, as well as applications that include wet, cold, hosedown, hazardous and corrosive environments. Configurations are also available in reverse-service and polarized orientations.
