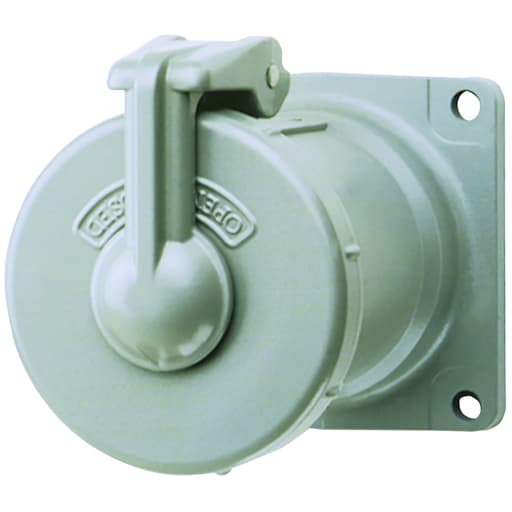

Killark - Killark VR1041 100A 4 Pole 4 Wire Receptacle Assembly

CopyCopy
Killark - Killark VR1041 100A 4 Pole 4 Wire Receptacle Assembly

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783936834856

  • Amperage - 100 Amp

  • Applications - VERSAMATE metallic pin and sleeve receptacles are designed for heavy duty industrial use. These devices supply power to both fixed and portable electrical equipment including pumps, generators, welders, vacuums, blowers, and similar apparatus. Suitable fo

  • Catalog Number - VR1041

  • Color - Gray

Packaging

  • 1 ea

EAN

00783936834856

Part #

294031

Catalog #

VR1041

Commercial reference

VR1041

12-Digit UPC:

783936834856

Amperage:

100 Amp

Applications:

VERSAMATE metallic pin and sleeve receptacles are designed for heavy duty industrial use. These devices supply power to both fixed and portable electrical equipment including pumps, generators, welders, vacuums, blowers, and similar apparatus. Suitable fo

Catalog Number:

VR1041

Color:

Gray

Conductor Size:

4-2 AWG

Country of Origin:

USA

ERP_productname:

KLRK VR1041 VERSAMATE 100A 4W4P RECPT

Family Brand Name:

Killark Electric

Finish:

Baked Epoxy

Heights:

4-3/4 Inch

Length:

5.37 Inch

Material:

Aluminum,Beryllium Copper,Brass,Stainless Steel

Number of Poles:

4 Pole

Number of Wires:

4 Wire

Size:

4-9/16" H x 4-1/4" W x 5-3/8" D

Sub Brand:

VERSAMATE

Type:

Aluminum NEMA 4X metallic receptacle

Voltage:

600 Volt

Widths:

4.25 in

Wire Size:

4-2 AWG

SoneparProductId:

SKU_US_32151717

100A 4 Pole 4 Wire Receptacle Assembly Features: Patented .Breech-Lock. cap serves as both flip lid and screw cover.; Patented notch in cap arm holds cap open for easy plug insertion or maintenance.; Type 4X rating when inserted into VersaMate receptacle and locking ring is tightened.; Patented pin design uses slotted spring clip which avoids excessive wear while providing continuous electrical pin to sleeve contact.; .Increased Safety. type box terminals with gripper ribs securely clamp around conductors.; Boxes come with a green grounding screw.; VersaMate® metallic pin & sleeve plugs, receptacles, and in-line connectors are designed for heavy duty industrial use. These devices supply power to both fixed and portable electrical equipment including pumps, generators, welders, vacuums, blowers and similar apparatus. Suitable for indoor and outodoor use, as well as applications that include wet, cold, hosedown, hazardous and corrosive environments. Configurations are also available in reverse-service and polarized orientations.
