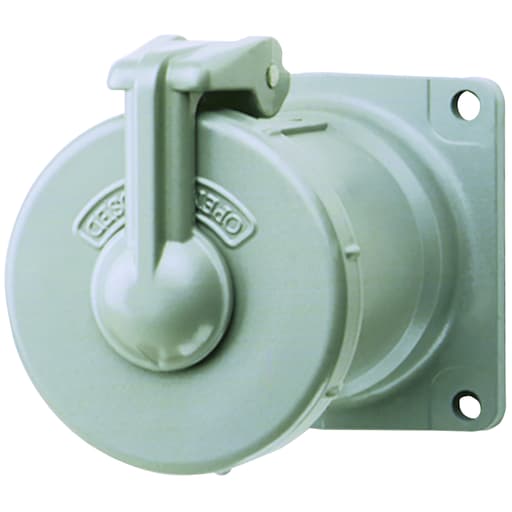

Killark - Killark VR1042 100A 3 Pole 4 Wire Receptacle Assembly

CopyCopy
Killark - Killark VR1042 100A 3 Pole 4 Wire Receptacle Assembly

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783936834863

  • Amperage - 100 Amp

  • Applications - Heavy Duty Industrial

  • Catalog Number - VR1042

  • Color - Gray

Packaging

  • 1 ea

EAN

00783936834863

Part #

294032

Catalog #

VR1042

Commercial reference

VR1042

12-Digit UPC:

783936834863

Amperage:

100 Amp

Applications:

Heavy Duty Industrial

Catalog Number:

VR1042

Color:

Gray

Conductor Size:

4-2 AWG

Country of Origin:

USA

ERP_productname:

KLRK VR1042 VERSAMATE 100A 3W4P RECPT

Family Brand Name:

Killark Electric

Finish:

Baked Epoxy

Heights:

4-3/4 Inch

Length:

5.37 Inch

Material:

Aluminum

Number of Poles:

4 Pole

Number of Wires:

3 Wire

Size:

4-9/16" H x 4-1/4" W x 5-3/8" D

Sub Brand:

Versamate®

Type:

Aluminum single gang round receptacle cover

Voltage:

600//250 VAC//VDC

Widths:

4.25 in

Wire Size:

Regular stranding: 4-2 AWG; extra flex: 4-2 AWG

SoneparProductId:

SKU_US_32568754

100A 3 Pole 4 Wire Receptacle Assembly Features: Patented .Breech-Lock. cap serves as both flip lid and screw cover.; Patented notch in cap arm holds cap open for easy plug insertion or maintenance.; Type 4X rating when inserted into VersaMate receptacle and locking ring is tightened.; Patented pin design uses slotted spring clip which avoids excessive wear while providing continuous electrical pin to sleeve contact.; .Increased Safety. type box terminals with gripper ribs securely clamp around conductors.; Boxes come with a green grounding screw.; VersaMate® metallic pin & sleeve plugs, receptacles, and in-line connectors are designed for heavy duty industrial use. These devices supply power to both fixed and portable electrical equipment including pumps, generators, welders, vacuums, blowers and similar apparatus. Suitable for indoor and outodoor use, as well as applications that include wet, cold, hosedown, hazardous and corrosive environments. Configurations are also available in reverse-service and polarized orientations.
