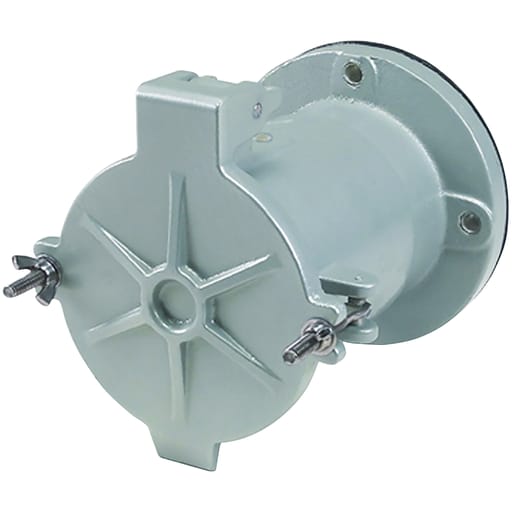

Killark - Killark VR20422 200A 3 Pole 4 Wire Receptacle Assembly

CopyCopy
Killark - Killark VR20422 200A 3 Pole 4 Wire Receptacle Assembly

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783936833149

  • Amperage - 200 Amp

  • Applications - For Wet, Cold, Hosedown, Hazardous or Corrosive Areas in Such Industrial Applications as Pulp and Paper Mills, Electrical Power Plants, Petrochemical Plants, Wastewater Treatment, Marine, Docks, Ports, Construction Sites, Breweries, Refineries, Chemical Plants, Grain Facilities, Textile Manufacturing, and Food Processing Facilities

  • Catalog Number - VR20422

  • Color - Gray

Packaging

  • 1 ea

EAN

00783936833149

Part #

329534

Catalog #

VR20422

Commercial reference

VR20422

12-Digit UPC:

783936833149

Amperage:

200 Amp

Applications:

For Wet, Cold, Hosedown, Hazardous or Corrosive Areas in Such Industrial Applications as Pulp and Paper Mills, Electrical Power Plants, Petrochemical Plants, Wastewater Treatment, Marine, Docks, Ports, Construction Sites, Breweries, Refineries, Chemical Plants, Grain Facilities, Textile Manufacturing, and Food Processing Facilities

Catalog Number:

VR20422

Color:

Gray

Conductor Size:

1 AWG-250 kcmil

Country of Origin:

USA

ERP_productname:

KLRK VR20422 VERSAMATE 200A RECPT 3W4P

Family Brand Name:

Killark Electric

Finish:

Baked Epoxy

Heights:

7.59 Inch

Length:

7.87 Inch

Material:

Aluminum

Mounting Type:

Surface

Number of Poles:

4 Pole

Number of Wires:

3 Wire

Size:

7-19/32" H x 6-5/8" W x 7-7/8" D

Sub Brand:

Versamate®

Type:

Aluminum NEMA 4X metallic receptacle

Voltage:

600 VAC, 250 VDC

Widths:

6.83 in

Wire Size:

1 AWG-250 kcmil

SoneparProductId:

SKU_US_34124796

200A 3 Pole 4 Wire Receptacle Assembly Features: Patented .Breech-Lock. cap serves as both flip lid and screw cover.; Patented notch in cap arm holds cap open for easy plug insertion or maintenance.; Type 4X rating when inserted into VersaMate receptacle and locking ring is tightened.; Patented pin design uses slotted spring clip which avoids excessive wear while providing continuous electrical pin to sleeve contact.; .Increased Safety. type box terminals with gripper ribs securely clamp around conductors.; Boxes come with a green grounding screw.; VersaMate® metallic pin & sleeve plugs, receptacles, and in-line connectors are designed for heavy duty industrial use. These devices supply power to both fixed and portable electrical equipment including pumps, generators, welders, vacuums, blowers and similar apparatus. Suitable for indoor and outodoor use, as well as applications that include wet, cold, hosedown, hazardous and corrosive environments. Configurations are also available in reverse-service and polarized orientations.
