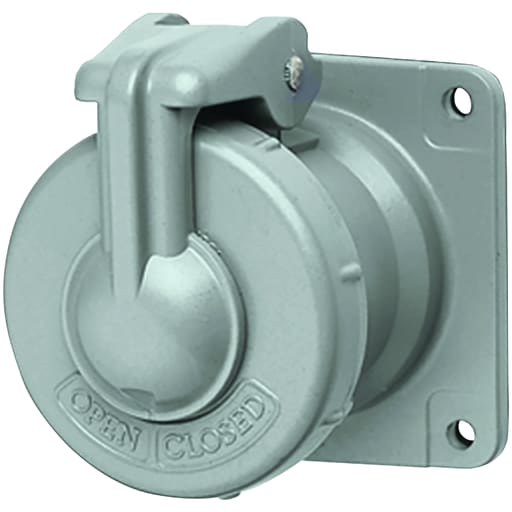

Killark - Killark VR642 60A 3 Pole 4 Wire Receptacle Assembly

CopyCopy
Killark - Killark VR642 60A 3 Pole 4 Wire Receptacle Assembly

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783936834504

  • Amperage - 60 Amp

  • Applications - Heavy Duty Industrial

  • Catalog Number - VR642

  • Color - Gray

Packaging

  • 1 ea

EAN

00783936834504

Part #

113840

Catalog #

VR642

Commercial reference

VR642

12-Digit UPC:

783936834504

Amperage:

60 Amp

Applications:

Heavy Duty Industrial

Catalog Number:

VR642

Color:

Gray

Conductor Size:

6-4 AWG

Country of Origin:

USA

ERP_productname:

KLRK VR642 60A 3W 4P RECP ASSY

Family Brand Name:

Killark Electric

Finish:

Baked Epoxy

Heights:

4.66 Inch

Length:

4-1/2 Inch

Material:

Aluminum

Number of Poles:

4 Pole

Number of Wires:

3 Wire

Size:

4-3/8" H x 4-1/4" W x 4-1/2" D

Sub Brand:

Versamate®

Type:

Metallic, Heavy Duty

Voltage:

600 VAC/250 VDC

Widths:

4.25 in

Wire Size:

6-4 AWG

SoneparProductId:

SKU_US_33226044

60A 3 Pole 4 Wire Receptacle Assembly Features: Patented .Breech-Lock. cap serves as both flip lid and screw cover.; Patented notch in cap arm holds cap open for easy plug insertion or maintenance.; Type 4X rating when inserted into VersaMate receptacle and locking ring is tightened.; Patented pin design uses slotted spring clip which avoids excessive wear while providing continuous electrical pin to sleeve contact.; .Increased Safety. type box terminals with gripper ribs securely clamp around conductors.; Boxes come with a green grounding screw.; VersaMate® metallic pin & sleeve plugs, receptacles, and in-line connectors are designed for heavy duty industrial use. These devices supply power to both fixed and portable electrical equipment including pumps, generators, welders, vacuums, blowers and similar apparatus. Suitable for indoor and outodoor use, as well as applications that include wet, cold, hosedown, hazardous and corrosive environments. Configurations are also available in reverse-service and polarized orientations.
