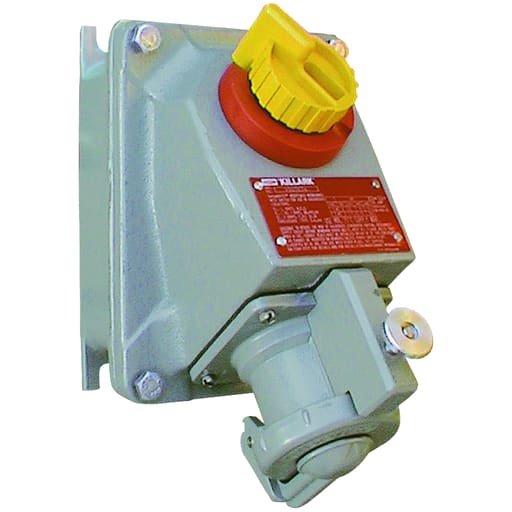

Killark - Killark VSQ3034 30A 3W4P VSQ Hazardous Interlocked Receptacle
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783936833323
Amperage - 30 Amp
Catalog Number - VSQ3034
Color - Battleship Gray
Country of Origin - USA
Packaging
1 ea
EAN
00783936833323
Part #
487083
Catalog #
VSQ3034
Commercial reference
VSQ3034
12-Digit UPC:
783936833323
Amperage:
30 Amp
Catalog Number:
VSQ3034
Color:
Battleship Gray
Country of Origin:
USA
ERP_productname:
KLRK VSQ3034 30A 3W4P HZD INTRLCK RECEPT
Family Brand Name:
Killark Electric
Heights:
7-1/2 Inch
Length:
11-1/4 Inch
Material:
Aluminum
NEMA Size:
3,4,4X,7,9
Number of Poles:
3 Pole
Number of Wires:
4 Wire
Sub Brand:
Killark
Type:
Hazardous Location
Voltage:
600 Volt
Widths:
10.750 in
30A 3W4P VSQ Hazardous Interlocked Receptacle Features: Compact size and footprint; Plug Interlock Mechanism for Dead-Front construction. Switch cannot be turned .ON. without fully inserted plug. Plug cannot be removed with switch in .ON. position; Factory Wired Receptacle (Load Side) .Off. position is padlockable for maintenance safety; Auxiliary Contact (late-make early-break) contact rated 10 Amp, 1/3 HP at 125/250 VAC.; Adjustable mounting lugs; Feed-through construction; Horsepower-rated internal switch; Killark VersaMate® VSQ Series of Switched and Interlocked receptacles provides for a receptacle solution in hazardous location areas. NEMA 4X weather-ingress ratings allow for indoor and outdoor use, and copper-free aluminum construction with electrostatically applied polyester/epoxy coating ensure the ultimate in corrosive resistance. Plug Interlock Mechanism for Dead-Front construction, ensuring that the switch cannot be turned on without a fully inserted plug (plug cannot be removed with switch in .ON.position, preventing possibly damaging arcs and sparks).
