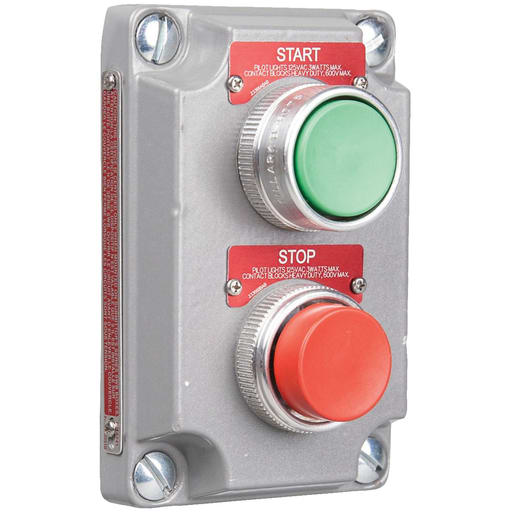

Killark - Killark XCS-0B4 XCS Series - Aluminum Momentary Contact Double Push Button Cover With Device - Green Button With "Start" Nameplate - Red Button With "Stop" Nameplate - 1NO/1NC Contact Rating

CopyCopy
Killark - Killark XCS-0B4 XCS Series - Aluminum Momentary Contact Double Push Button Cover With Device - Green Button With "Start" Nameplate - Red Button With "Stop" Nameplate - 1NO/1NC Contact Rating

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783936890081

  • Actuator - Momentary push buttons

  • Amperage - 10 Amp

  • Applications - For Hazardous Locations, Installations at Petroleum Refineries, Chemical and Petrochemical Plants and Other Processing or Storage Facilities

  • Catalog Number - XCS-0B4

Packaging

  • 1 ea

EAN

00783936890081

Part #

182067

Catalog #

XCS-0B4

Commercial reference

XCS-0B4

12-Digit UPC:

783936890081

Actuator:

Momentary push buttons

Amperage:

10 Amp

Applications:

For Hazardous Locations, Installations at Petroleum Refineries, Chemical and Petrochemical Plants and Other Processing or Storage Facilities

Catalog Number:

XCS-0B4

Color:

Green/Red

Country of Origin:

USA

ERP_productname:

KLRK XCS-0B4 PB STATION

Family Brand Name:

Killark Electric

Heights:

4-3/8 Inch

Length:

6-3/8 Inch

Material:

Aluminum

Number of Poles:

2-2 Pole

Size:

4-5/8" H x 3" W x 1-1/16" D

Sub Brand:

Killark

Type:

Aluminum cover with two push buttons

Voltage:

600 VAC

Widths:

6 in

SoneparProductId:

SKU_US_32887322

XCS Series - Aluminum Momentary Contact Double Push Button Cover With Device - Green Button With "Start" Nameplate - Red Button With "Stop"Nameplate - 1NO/1NC Contact Rating Features: Copper free cast aluminum alloy.; Ground flange joint between bolted cover and box provide required flame path.; Push button, selector switches and pilot light operator bodies are copper-free aluminum.; Operating shaft in both push buttons and selector switches are stainless steel.; Killark XCS SERIES CONTROL STATION Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use are a Non-Factory Sealed unit requiring the need for a conduit seal fitting. UL Listed and CSA Certified.
