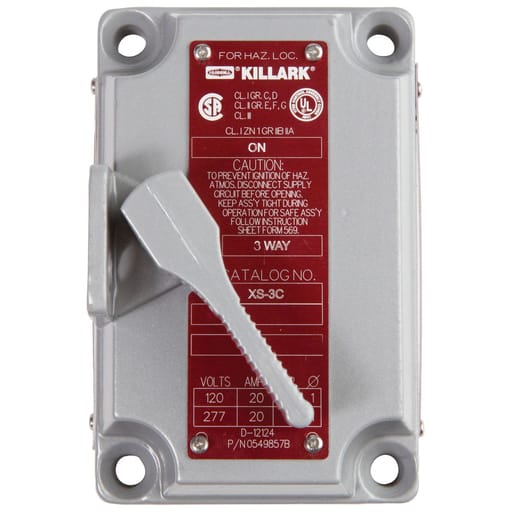

Killark - Killark XS-3C XS Series - Aluminum 3-Way/SPDT (No Center Off) Tumbler Switch Cover With Device - 20A

CopyCopy
Killark - Killark XS-3C XS Series - Aluminum 3-Way/SPDT (No Center Off) Tumbler Switch Cover With Device - 20A

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783936925127

  • Actuator - Lever

  • Amperage - 20 Amp

  • Applications - For Making, Breaking or Changing Connections in an Electric Circuit is Required

  • Catalog Number - XS-3C

Packaging

  • 1 ea

EAN

00783936925127

Part #

124255

Catalog #

XS-3C

Commercial reference

XS-3C

12-Digit UPC:

783936925127

Actuator:

Lever

Amperage:

20 Amp

Applications:

For Making, Breaking or Changing Connections in an Electric Circuit is Required

Catalog Number:

XS-3C

Color:

Gray

Country of Origin:

China

ERP_productname:

KLRK XS-3C TUMBL SWITCH CVR 3WAY 20A

Family Brand Name:

Killark Electric

Heights:

4-1/4 Inch

Length:

6 Inch

Material:

Stainless Steel

Number of Poles:

1 Pole

Size:

4-5/8" H x 3" W x 1-13/16" D

Sub Brand:

Killark

Type:

3-Way, Non-Reversing

Voltage:

120/277 VAC

Widths:

6.25 in

SoneparProductId:

SKU_US_31142555

XS Series - Aluminum 3-Way/SPDT (No Center Off) Tumbler Switch Cover With Device - 20A Features: Front lever rotary operated switch assemblies.; Standard provisions for padlocking in either .ON. or .OFF. position.; The lever is connected to a threaded stainless steel shaft which passes through the cover.; Killark XCS SERIES TUMBLER SWITCH Control Stations provide control means in hazardous location areas turning ON and OFF Motors, Fans, Lights etc. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use are a Non-Factory Sealed unit requiring the need for a conduit seal fitting. UL Listed and CSA Certified.
