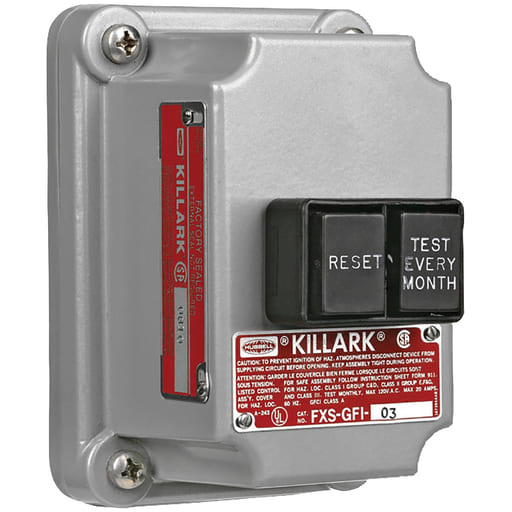

Killark - KLRK FXS-GFIO3 FACT.SEALED GFI 20A

CopyCopy
Killark - KLRK FXS-GFIO3 FACT.SEALED GFI 20A

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783936198255

  • Actuator - Push buttons

  • Amperage - 20 Amp

  • Applications - FXS ground fault interrupters are designed to interrupt a circuit when a ground fault is detected on equipment which may be handled by personnel in hazardous locations.

  • Catalog Number - FXS-GFIO3

Packaging

  • 1 ea

EAN

00783936198255

Part #

341051

Catalog #

FXS-GFIO3

Commercial reference

FXS-GFIO3

12-Digit UPC:

783936198255

Actuator:

Push buttons

Amperage:

20 Amp

Applications:

FXS ground fault interrupters are designed to interrupt a circuit when a ground fault is detected on equipment which may be handled by personnel in hazardous locations.

Catalog Number:

FXS-GFIO3

Color:

Gray

Country of Origin:

USA

ERP_productname:

KLRK FXS-GFIO3 FACT.SEALED GFI 20A 5MA TRIP

Family Brand Name:

Hubbell Incorporated

Heights:

5 Inch

Length:

6-3/4 Inch

NEMA Size:

3

Number of Poles:

2-2 Pole

Size:

5-5/16" H x 3-11/16" W x 2.59" D

Sub Brand:

Killark

Type:

Aluminum factory sealed ground fault interrupter cover assembly

Voltage:

120 VAC

Widths:

6.125 in

SoneparProductId:

SKU_US_31651510

FXS Series - Aluminum Ground Fault Interrupter Cover Assembly - Factory Sealed - 20A/120Vac/60Hz - 4-6 Miliamp Trip Setting Features: Eliminates external sealing requirements.; Lower installation cost.; NEMA 3 weatherproof.; Color coded wiring with more wiring space for easier field installation.; Stainless steel captive screws for cover assembly.; Lockout accessory available must be factory installed.; Ground boss for grounding in the splice box.; Device bodies and covers are copper-free cast aluminum alloy.; Push button, selector switches and pilot light bodies are copper-free aluminum.; Operating shaft in both push buttons and selector switches are stainless steel.; Killark SEAL-X Series Factory Sealed Control Stations provide Ground fault interrupting protection solutions in hazardous location areas. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified.
