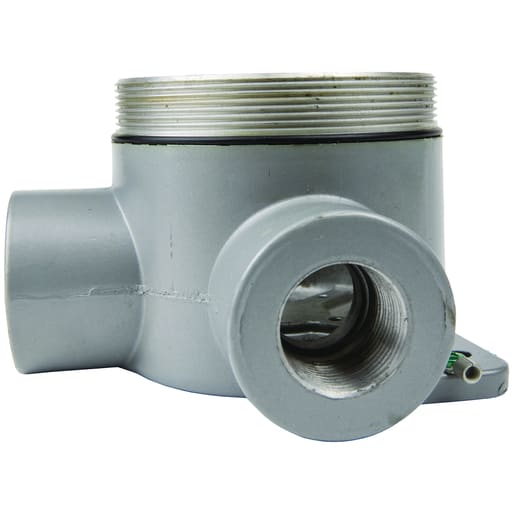

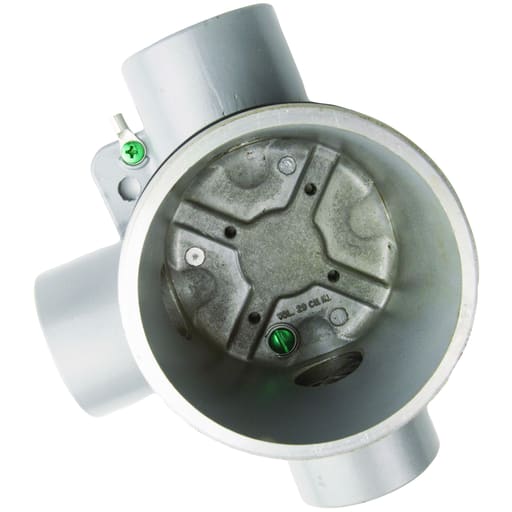

Killark - KLRK GEBT-2-EX OUTLET BODY 3/4 IN A

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783936092157

  • Applications - Conduit boxes installed in conduit systems within hazardous areas to: protect conductors in threaded rigid conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction, and provide access to conductors for maintenance and future system changes.

  • Catalog Number - GEBT-2-EX

  • Color - Gray

  • Country of Origin - Mexico

Packaging

  • 1 ea

EAN

00783936092157

Part #

359274

Catalog #

GEBT-2-EX

Commercial reference

GEBT-2-EX

12-Digit UPC:

783936092157

Applications:

Conduit boxes installed in conduit systems within hazardous areas to: protect conductors in threaded rigid conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction, and provide access to conductors for maintenance and future system changes.

Catalog Number:

GEBT-2-EX

Color:

Gray

Country of Origin:

Mexico

ERP_productname:

KLRK GEBT-2-EX OUTLET BODY 3/4 IN AL T-TYPE ATEX IECEX

Family Brand Name:

Hubbell Incorporated

Finish:

Powder Epoxy Paint

Heights:

5.19 Inch

Length:

4.313 Inch

Material:

Aluminum

Size:

4.313 in x 6.5 in x 5.19 in

Sub Brand:

Killark

Type:

Outlet Body With Cover

Widths:

6.5 in

SoneparProductId:

SKU_US_73800879

GEB-EX 3-1/2 ID RD Body, "T" 3/4" Hubs, Copper Free Cast Aluminum, Nitrile O-Ring, UL/CSA/ATEX/IECEx, Class I Div. 1 EX D, Type 4 IP66, Instrument Enclosure Features: Suitable for NEMA 4X applications. Integral mounting lugs. Green ground screw standard. External cover thread on body plus smooth integral hub bushing protects conductor insulation when pulling. Taper threaded hubs provide ground continuity. External threaded body for additional wiring room. Covers and gaskets furnished with boxes as standard.
