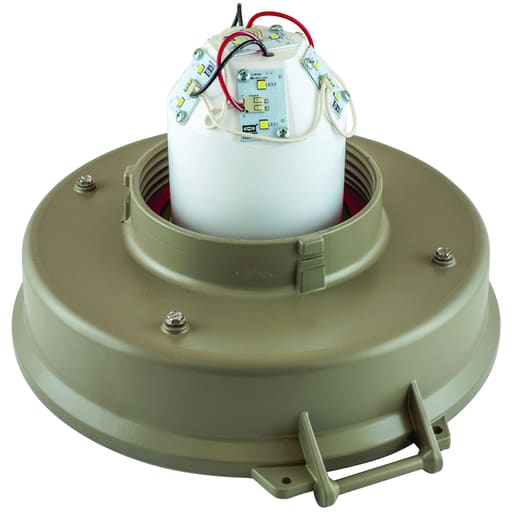

Killark - KLRK VM1L4530 DISCONTINUED-VM1 LED

CopyCopy
Killark - KLRK VM1L4530 DISCONTINUED-VM1 LED

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783936072814

  • Amperage - 180m/416m Amp

  • Applications - CERTILITE V VM1L LED fixtures are designed for installations where moisture, dirt, corrosion, and vibration may be present; or NEMA 3 and 4X areas where wind, water, snow, or high ambients can be expected. They can be used in locations made hazardous by t

  • Catalog Number - VM1L4530

  • Color - Tan

Packaging

  • 1 ea

EAN

00783936072814

Part #

181122

Catalog #

VM1L4530

Commercial reference

VM1L4530

12-Digit UPC:

783936072814

Amperage:

180m/416m Amp

Applications:

CERTILITE V VM1L LED fixtures are designed for installations where moisture, dirt, corrosion, and vibration may be present; or NEMA 3 and 4X areas where wind, water, snow, or high ambients can be expected. They can be used in locations made hazardous by t

Catalog Number:

VM1L4530

Color:

Tan

Country of Origin:

USA

ERP_productname:

KLRK VM1L4530 VM1 LED 45W 120-277V HSG

Family Brand Name:

Hubbell Incorporated

Finish:

Powder Epoxy Paint

Fixture Type:

LED Luminaire

Heights:

14 Inch

Length:

14.06 Inch

Material:

Aluminum

Number of Wires:

11 Wire

Size:

10.77" H x 13.55" W x 13.55" D

Sub Brand:

Killark

Type:

Aluminum LED fixture

Voltage:

277 Volt

Wattage:

48.4 Watt

Widths:

14.88 in

SoneparProductId:

SKU_US_31983794

VM1L Series - Aluminum 45 Watt Led Light Fixture (Drivers And LEDs Included) - Optic Thread Size 5-1/2 Inch (Reduced Profile) - 120-277VAC At 50/60Hz Features: Standard supplemental 6KV surge protection; Optional supplementary surge protection available 20KA/10KV (120-277 VAC), 10KA/10KV (347-480 VAC); Reduced profile with Traditional Industrial Appearance and Suitability; Wide variety of optics including globes, globes with reflectors, all-glass refractors, and spin-top refractors; Swing-Barrel Nut patented tank mounting system; Optional Mounting arrangements including Pendant, Wall, Ceiling, Stanchion and others; VM1L LED Housings can be retrofitted to existing VM splice boxes to upgrade from HID sources; Energy Savings . less than 55 Watts of Power; Long Life . 50,000 - 55,000 maintenance free hours to 70% initial lumens; Crisp White Light for Excellent Color Rendering . Chromaticity 5000±K (CCT) 70 CRI; Ambient suitability -40±C to 55±C; Instant on . including after power interruption; .World Voltage. 120-277VAC 50/60Hz; Solderless LED Board Connections . Vibration Resistant; Dual Driver Option (DDR) . For additional energy savings, half of the fixture can be turned off; LM80-08 Measurement of lumen maintenance for LED light sources; LM79-08 Certified .Absolute. Photometry, including Chromaticity Color for Solid State Lighting; L70 Values - Industry Nomenclature for Hours of use to 70% of Initial Lumens (TM-21+ Cal.); Reduced profile with traditional industrial appearance and suitability. VM1L LED housings can be retrofitted to existing VM Series splice boxes; upgrade from HID. Energy savings - less than 50W of power. Long life - 50,000-55,000 maintenance free hours to
