Killark - KLRK VM5P250 DISCONTINUED-VM5 HSG 2

CopyCopy

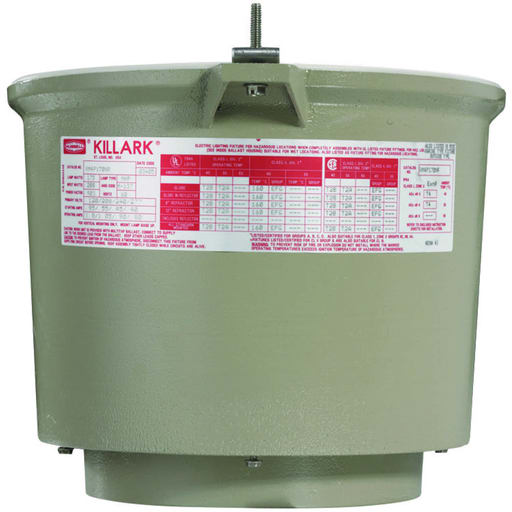

Killark - KLRK VM5P250 DISCONTINUED-VM5 HSG 2

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783936966953

  • Amperage - 850m/960m/1.1/1.25/1.45/1.9/2.5 Amp

  • Applications - Killark CERTILITE V Series sets a new standard for industrial grade HID luminaires. Designed for installations where moisture, dirt, dust, corrosion, and vibration may be present; these fixtures are suitable for NEMA 3 and 4X areas where wind, water, snow

  • Catalog Number - VM5P250

  • Color - Tan

Packaging

  • 1 ea

EAN

00783936966953

Part #

201512

Catalog #

VM5P250

Commercial reference

VM5P250

12-Digit UPC:

783936966953

Amperage:

850m/960m/1.1/1.25/1.45/1.9/2.5 Amp

Applications:

Killark CERTILITE V Series sets a new standard for industrial grade HID luminaires. Designed for installations where moisture, dirt, dust, corrosion, and vibration may be present; these fixtures are suitable for NEMA 3 and 4X areas where wind, water, snow

Catalog Number:

VM5P250

Color:

Tan

Country of Origin:

USA

ERP_productname:

KLRK VM5P250 VM5 HSG 250W MHP QUAD

Family Brand Name:

Hubbell Incorporated

Finish:

Powder Epoxy Paint

Heights:

14 Inch

Length:

14.06 Inch

Material:

Aluminum

Mounting Type:

Luminaire Only

Sub Brand:

Killark

Type:

Non-Reversing

Voltage:

120/277/347/480 Volt

Wattage:

250 Watt

Widths:

14.88 in

SoneparProductId:

SKU_US_73439057

VM5 Series - Aluminum 250 Watt High Wattage Pulse Start Metal Halide Light Fixture (Lamp Not Included) - Optic Thread Size 7-3/4 Inch -Quadri-Volt (120/208/240/277V) At 60Hz Features: Ballast tank and splice box . corrosion resistant copper-free aluminum alloy with baked powder epoxy/polyester finish, electrostatically applied for complete, uniform corrosion protection.; All external hardware . 316 stainless steel.; Guards . painted copper-free aluminum alloy or 316SS for 7-3/4. glass optics and Enclosed Reflectors.; Spin-top Refractor Guards are Plated Steel.; Reflectors . lightweight, corrosion resistant fiberglass reinforced polyester, or copper-free aluminum.; Seven mounting splice box types; Pendant, Flex Pendant, Ceiling, Wall bracket, Cone Top, 25± Angle Stanchion, Straight Stanchion . in a variety of entry sizes, including M20 for the VMX ceiling style.; Quartz auxiliary, HPS instant restart, Ballast Protectors; Normally shipped as components for fast delivery, or may be ordered factory assembled with or without lamps.; Options for fuses and quick disconnect; Swing-barrel nut patented tank mounting system: stainless-to-stainless securement; takes load off during installation; uses ordinary tools; saves time and labor. Earthquake tab: built-in attachment point for safety cables; secures fixture to structure in
