Killark - KLRK XCS-0S2L3F COVER W/DEVICE SPRI

CopyCopy
Killark - KLRK XCS-0S2L3F COVER W/DEVICE SPRI

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783936891101

  • Actuator - 2-position selector switch

  • Amperage - 10 Amp

  • Applications - Hazardous locations due to the presence of flammable gases or vapors, combustible dusts, or easily ignitable fiber or flyings. Installations at petroleum refineries, chemical and petrochemical plants, and other processing or storage facilities where simil

  • Catalog Number - XCS-0S2L3F

Packaging

  • 1 ea

EAN

00783936891101

Part #

356918

Catalog #

XCS-0S2L3F

Commercial reference

XCS-0S2L3F

12-Digit UPC:

783936891101

Actuator:

2-position selector switch

Amperage:

10 Amp

Applications:

Hazardous locations due to the presence of flammable gases or vapors, combustible dusts, or easily ignitable fiber or flyings. Installations at petroleum refineries, chemical and petrochemical plants, and other processing or storage facilities where simil

Catalog Number:

XCS-0S2L3F

Color:

Black

Country of Origin:

USA

ERP_productname:

KLRK XCS-0S2L3F COVER W/DEVICE SPRING TO LEFT

Enclosure Material:

Stainless Steel

Family Brand Name:

Hubbell Incorporated

Heights:

4 Inch

Length:

7-1/2 Inch

Material:

Aluminum

Number of Poles:

1-1 Pole

Size:

1 1/2 in

Sub Brand:

Killark

Type:

Non-Reversing

Voltage:

600 VAC

Widths:

5.625 in

SoneparProductId:

SKU_US_75273483

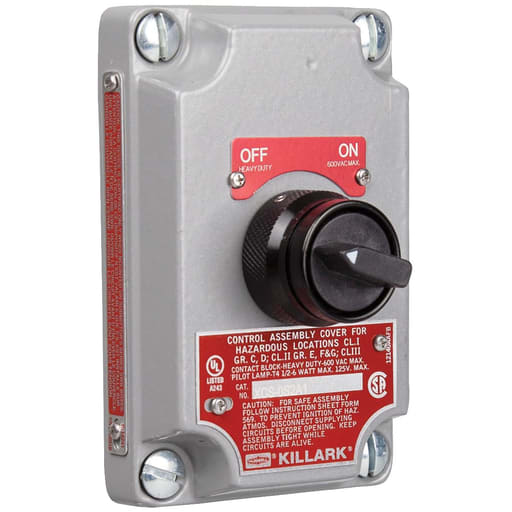

XCS Series - Aluminum Spring Returned 2-Position Selector Switch Cover With Device - Spring Return To Left From Right - "Off - On" Nameplate -1NO/1NC Contact Rating Features: Copper free cast aluminum alloy.; Ground flange joint between bolted cover and box provide required flame path.; Push button, selector switches and pilot light operator bodies are copper-free aluminum.; Operating shaft in both push buttons and selector switches are stainless steel.; Killark XCS SERIES CONTROL STATION Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use are a Non-Factory Sealed unit requiring the need for a conduit seal fitting. UL Listed and CSA Certified.
