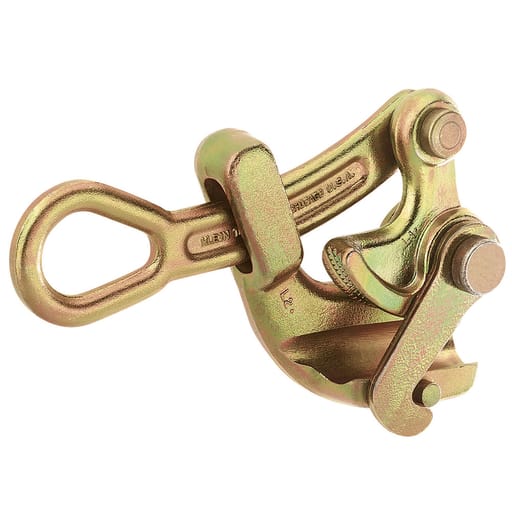

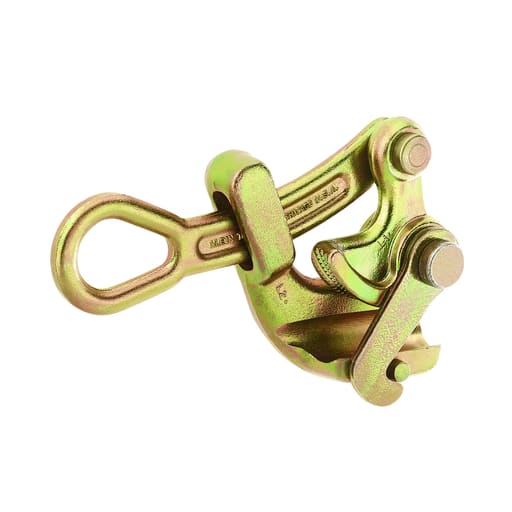

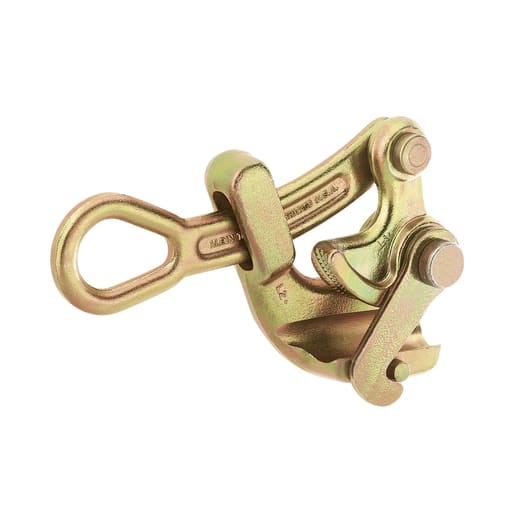

Klein Tool - Klein 162520-7/8 Haven's Grip for Wire Rope 0.88"

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 092644472220

  • Applications - For Holding Cable

  • Catalog Number - 162520-7/8

  • Country of Origin - USA

  • Depths - 6-3/4 Inch

Packaging

  • 1 ea

EAN

00092644472220

Part #

362869

Catalog #

162520-7/8

Commercial reference

162520-7/8

12-Digit UPC:

092644472220

Applications:

For Holding Cable

Catalog Number:

162520-7/8

Country of Origin:

USA

Depths:

6-3/4 Inch

ERP_productname:

KLEI 162520-7/8 GRIP FOR WIRE ROPE, 0.88"

Family Brand Name:

Klein Tools, Inc.

Heights:

1.692 Inch

Material:

Steel

Sub Brand:

Havens®

Type:

Aggressive Jaw, Wire Rope

Widths:

4.500 in

SoneparProductId:

SKU_US_26794838

The Klein Tools 1625 Series Wire Rope Haven's® Grips are designed for use when a light, compact grip is desired and where cable deformation is not a factor. Available with a swing latch to help hold cable in the jaw. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability. Warnings: Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.; When used on/near energized lines, ground, insulate, or isolate grip before pulling.; Do not exceed rated capacity.; Always match proper size and type of grip to application.; Grips are to be used for temporary installation, not for permanent anchorage. - Features: Designed for use when light, compact grip is desired and where conductor damage is not a factor; Works on 0.38 to 0.88-Inch (9.65 to 22.35 mm) wire rope cable diameter range; Max Safe Load of 8000 lb (3629 kg); Gripping pressure of the knurled jaw is applied to 1/4-Inch (6.35 mm) cable area; Swing latch helps hold cable in the jaw; Works on 0.38 to 0.88-Inch (9.65 to 22.35 mm) wire rope cable diameter range with max safe load of 8000 lb (3629 kg); Made in USA
