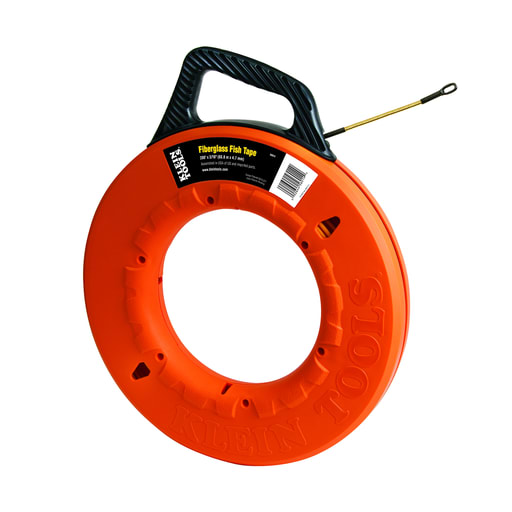

Klein Tool - Klein 56014 3/16" x 200' Fiberglass Fish Tape

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 092644560149

  • Applications - For Flexibility and Easy Navigation Through Conduit Runs

  • Catalog Number - 56014

  • Country of Origin - USA

  • Depths - 20-1/2 Inch

Packaging

  • 1 ea

EAN

00092644560149

Part #

158566

Catalog #

56014

Commercial reference

56014

12-Digit UPC:

092644560149

Applications:

For Flexibility and Easy Navigation Through Conduit Runs

Catalog Number:

56014

Country of Origin:

USA

Depths:

20-1/2 Inch

ERP_productname:

KLEI 56014 200' (60.96 M) FIBERGLASS FISH TAPE

Family Brand Name:

Klein Tools, Inc.

Heights:

2 Inch

Length:

200 Foot

Material:

Fiberglass

Tensile Strength:

500 lb

Type:

Fiberglass Fish Tapes

Widths:

2.500 in

Wire Size:

3/16 in

SoneparProductId:

SKU_US_25400586

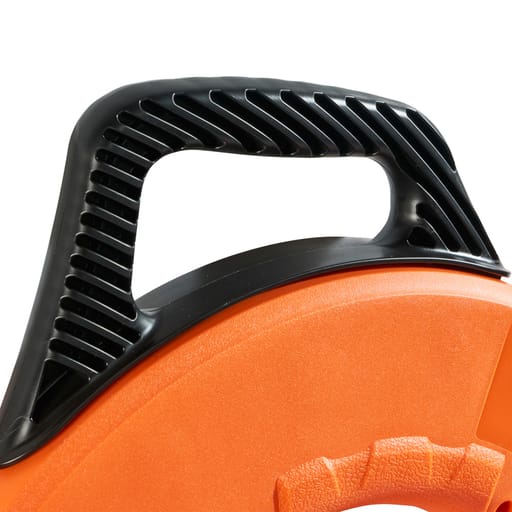

Designed for even longer conduit runs, the Klein Tools 200-foot (60.96 m) Fiberglass Fish Tape is flexible enough to glide over existing wires in crowded conduit, but stiffer than other non-conductive fish tapes. The 17-Inch (432 mm) case diameter allows user to reel in 10-percent more tape in a single revolution than 16-Inch (406 mm) diameter fish tape cases, saving time and effort. Features: Permanent, laser etched 1-foot increments on the tape allow you to more accurately measure the depth of conduit runs and determine the amount of tape left to pay out; Non-conductive, fiberglass fish tape slides easily over existing wires and through multiple bends; The lightweight and strong fiberglass tape resists harsh elements and is strength rated up to 500 pulling pounds; The 17-Inch case diameter means you can reel in 10-percent more tape in a single revolution vs. a 16-Inch (406 mm) case; Durable 7-Inch leader helps push through crowded conduit; Raised fingergrips help transfer 100-percent of the winding power from your hand and fingers; The unique sloped handle optimizes the position of your hand for quick hand-over-hand rewinds and allows a more level payout of tape on the backswing while feeding conduit; Made in the USA; Repair kit available (Cat. No. 56115); Replacement eyelets (Cat. No. 56116) and spiral leaders (Cat. No. 56120) available; Made in USA; Raised finger grips help transfer 100-percent of the winding power from your hand and fingers - Warnings: Wear approved eye protection when feeding, pulling or rewinding fish tape.; Although fiberglass fish tape itself is non-metallic, its metallic tip and leader are conductive and could be grounded against conduit. Do NOT use on or near live electrical circuits.; Do NOT pull a fiberglass fish tape with any type of mechanical fish-tape puller. A mechanical puller will severely damage the tape, and could lead to personal injury.; Use a safe work position to avoid loss of balance when using fish tape.; Do NOT bend a fiberglass fish tape to a radius smaller than 3'' (76 mm) or the tape may break.; Never remove screws while fish tape is coiled inside reel. - Replaced By Products: 56025; 56115; 56116; 56120
