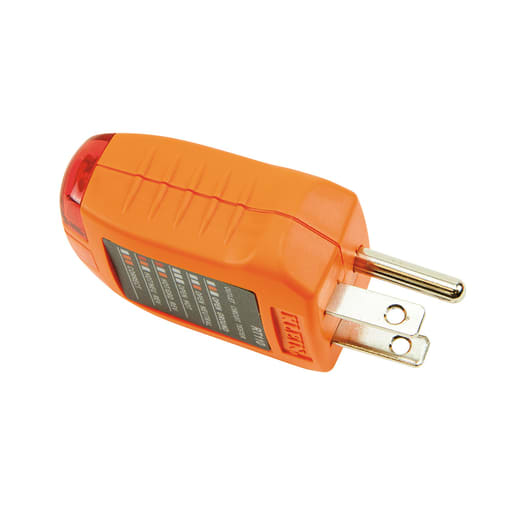

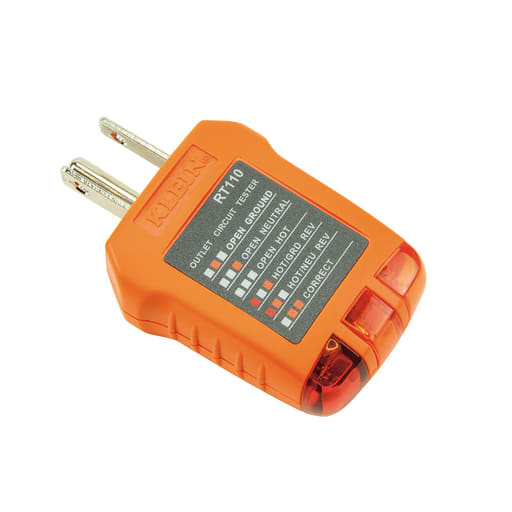

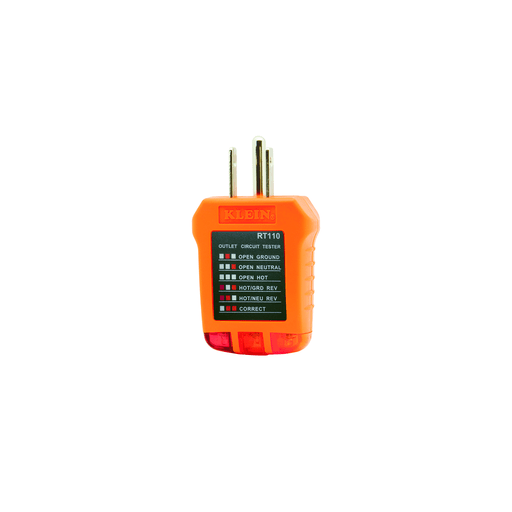

Klein Tool - Klein RT110 Receptacle Tester

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 092644690266

  • Applications - For Wiring Correct, Open Ground, Reverse Polarity, Open Hot, Open Neutral, Hot/Ground Reversed

  • Catalog Number - RT110

  • Country of Origin - China

  • Depths - 3 Inch

Packaging

  • 1 ea

EAN

00092644690266

Part #

206553

Catalog #

RT110

Commercial reference

RT110

12-Digit UPC:

092644690266

Applications:

For Wiring Correct, Open Ground, Reverse Polarity, Open Hot, Open Neutral, Hot/Ground Reversed

Catalog Number:

RT110

Country of Origin:

China

Depths:

3 Inch

ERP_productname:

KLEI RT110 RECEPTACLE TESTER

Enclosure:

Plastic

Family Brand Name:

Klein Tools, Inc.

Heights:

2.88 Inch

Length:

1.62 Inch

Overall Length:

1.62 in

Type:

3-Wire

Voltage:

110/125 Volt

Widths:

1.88 in

SoneparProductId:

SKU_US_25307075

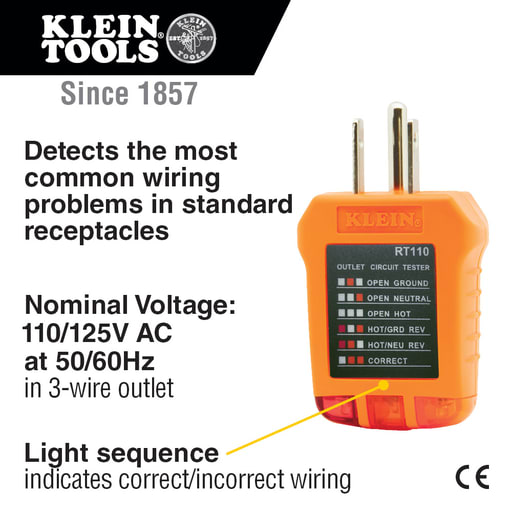

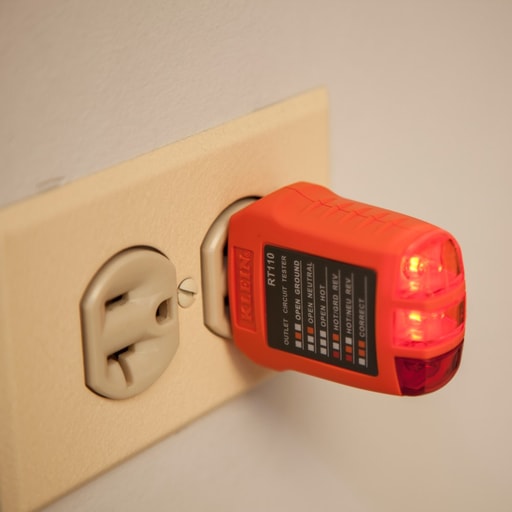

Klein Tools RT110 Receptacle Tester detects the most common wiring problems in standard receptacles. Conditions indicated: wiring correct, open ground, reverse polarity, open hot, open neutral, hot/ground reversed. Conditions not indicated: quality of ground, multiple hot wires, combinations of defects, reversal of grounded and grounding conductors. Warnings: Read, understand, and follow all warnings and instructions before operating testers.; Always consult a qualified electrician to resolve wiring problems.; Always wear approved eye protection. - Features: Outlet tester's light sequence on receptacle tester indicates correct/incorrect wiring; Receptacle tester conforms to UL Std 1436, Certified to CSA Std C22.2 #160; Operating temp: 32-degrees F to 140-degrees F (0-degrees C to 40-degrees C); Built to withstand a 6.6-foot (2m) drop; Nominal Voltage: 110/125V AC at 50/60Hz in 3-wire outlet; Designed to detect the most common wiring problems in standard receptacles; Light sequence indicates correct/incorrect wiring; Conforms to UL Std 1436, Certified to CSA Std C22.2 #160; Light sequence on receptacle tester indicates correct/incorrect wiring; Outlet tester conforms to UL Std 1436, Certified to CSA Std C22.2 #160
