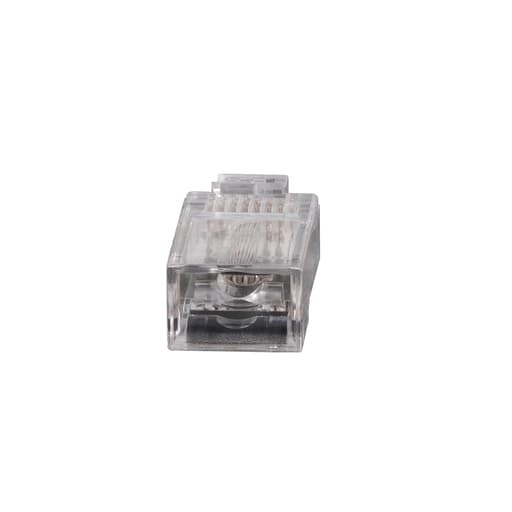

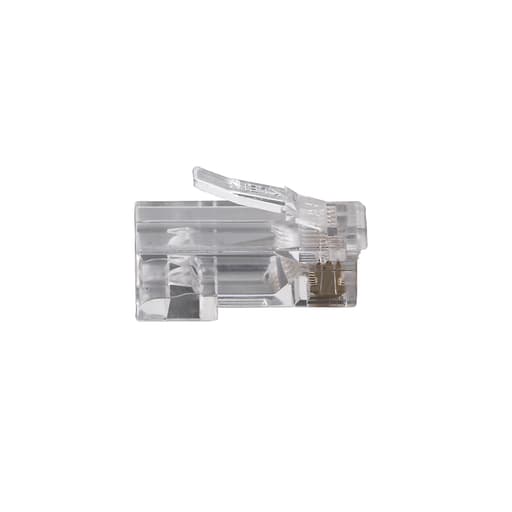

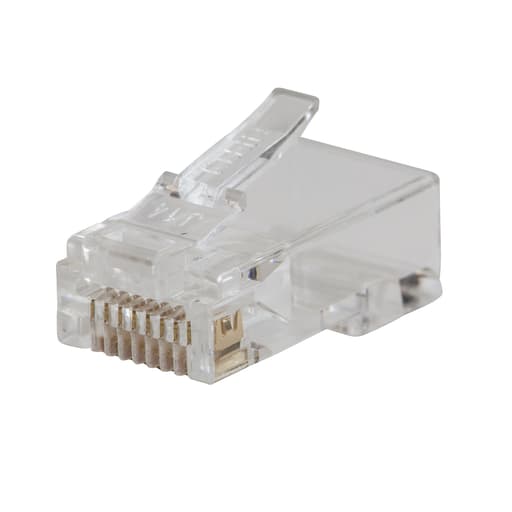

Klein Tool - Klein VDV826-728 Pass-Thru Modular Data Plugs, RJ45-CAT5E, 10-Pack
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 092644690976
Applications - For Voice and Data
Catalog Number - VDV826-728
Color - Clear
Country of Origin - Taiwan
Packaging
1 ea
EAN
00092644690976
Part #
182605
Catalog #
VDV826-728
Commercial reference
VDV826-728
12-Digit UPC:
092644690976
Applications:
For Voice and Data
Catalog Number:
VDV826-728
Color:
Clear
Country of Origin:
Taiwan
Depths:
0.885 Inch
ERP_productname:
KLEI VDV826-728 PASS-THRU DATA PLUG, CAT5E, 10 PK
Family Brand Name:
Klein Tools, Inc.
Heights:
0.453 Inch
Material:
Gold
Number of Positions:
8
Overall Length:
0.875 in
Sub Brand:
Pass-Thru™
Type:
RJ45
Widths:
0.094 in
SoneparProductId:
SKU_US_26153240

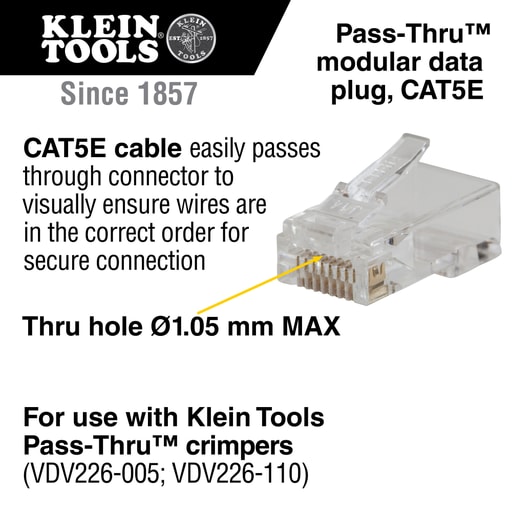

Exclusive Klein-designed Pass-Thru™ modular plugs for fast, reliable connector installations for data applications.Saves time, trims flush to end face when used with Klein Tools Pass-Thru™ Modular Crimper VDV226-110, and eliminates wasted materials. Features: Klein exclusive Pass-Thru™ Connectors provide fast, reliable connector installations for data applications; CAT5e Cable easily passes through connector to visually ensure that wires are in the correct order for consistent and secure terminations; 50 .-inch gold plating on all contact surfaces; Category 5e performance per EIA/TIA B.2. FCC compliant, UL rated, RoHS compliant; For use with Klein Tools Pass-Thru™ Modular Crimper VDV226-110; 10-Pack; 8 position, 8 contact Pass Through style data plug for solid or stranded cable; Max diameter for CAT5E Pass-Thru™ Connectors is 0.04\" (1.01 mm); Pass-Thru Technology; 50 .-inch minimum gold plating on all contact surfaces; Max diameter for CAT5E Pass-Thru™ Connectors is 0.04-Inch (1.01 mm); Category 5e performance per EIA/TIA B.2. and RoHS compliant - Warnings: Do NOT use on energized circuits or cabling systems
