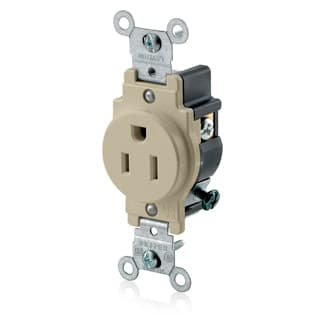

Leviton Mfg Co - Leviton 5015-I 125 Volt 15 Amp 2-Pole 3-Wire NEMA 5-15R 1/2 Hp Ivory Nylon Grounding Narrow Straight Blade Single Receptacle

CopyCopy
Leviton Mfg Co - Leviton 5015-I 125 Volt 15 Amp 2-Pole 3-Wire NEMA 5-15R 1/2 Hp Ivory Nylon Grounding Narrow Straight Blade Single Receptacle

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 078477206003

  • Amperage - 15 Amp

  • Applications - Commercial

  • Catalog Number - 5015-I

  • Color - Ivory

Packaging

  • 1 ea

EAN

00078477206003

Part #

134561

Catalog #

5015-I

Commercial reference

5015-I

12-Digit UPC:

078477206003

Amperage:

15 Amp

Applications:

Commercial

Catalog Number:

5015-I

Color:

Ivory

Conductor Size:

14-10 AWG

Country of Origin:

Mexico

ERP_productname:

LEV 5015-I IV SGL RCPT-NEMA5-15R

Family Brand Name:

Leviton

Grade:

Commercial

Horsepower:

1/2 hp

Material:

Nylon

Mounting Type:

Wall Box, Flush, Screw

NEMA:

5-15R

Number of Phases:

1 Phase

Number of Poles:

2 Pole

Number of Wires:

3 Wire

Size:

46 H x 1.38 W x 16 D IN

Sub Brand:

Commercial Receptacles

Tc Connection:

Push-In and Side Wired

Type:

Single Outlet,Straight Blade

Voltage:

125 Volt

Wire Size:

14-10 AWG

SoneparProductId:

SKU_US_26509184

Leviton.s line of Heavy-Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings. NEMA: 5-15R - Features: Leviton.s line of Heavy-Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings. - Color Variations: Brown - Related Products: 5015; 5015-T; 5015-W
