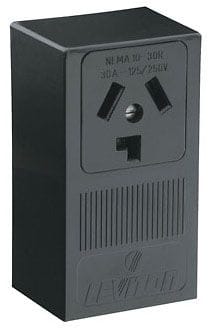

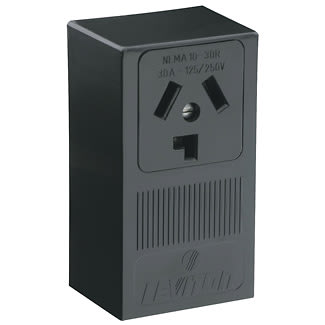

Leviton Mfg Co - Leviton 5054 125/250 Volt 30 Amp 3-Pole 3-Wire NEMA 10-30R 2 Hp Black Thermoplastic Surface Mount Straight Blade Receptacle
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 078477100226
Amperage - 30 Amp
Applications - For Commercial
Catalog Number - 5054
Color - Black
Packaging
1 ea
EAN
00078477100226
Part #
170001
Catalog #
5054
Commercial reference
5054
12-Digit UPC:
078477100226
Amperage:
30 Amp
Applications:
For Commercial
Catalog Number:
5054
Color:
Black
Conductor Size:
14-6 AWG
Current:
30 Amp
ERP_productname:
LEV 5054 BLK SURF RCPT-NEMA10-30R
Family Brand Name:
Leviton
Grade:
Commercial
Horsepower:
2 hp
Material:
Thermoplastic
Mounting Type:
Flange
NEMA:
10-30R
Number of Poles:
3 Pole
Number of Wires:
3 Wire
Size:

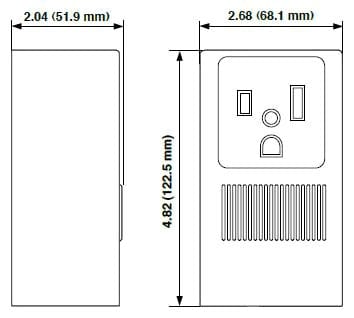

4.82 H x 2.68 W x 24 D IN
Tc Connection:
Side Wired
Type:
Straight Blade
Voltage:
125/250 Volt
Wire Size:
14-6 AWG
SoneparProductId:
SKU_US_26332130
Built of durable thermoplastic, Leviton Power Receptacles . come equipped with heavy-gauge, double-wire copper alloy contacts. To ensure correct and speedy wiring, terminals have ID markings. Features: Built of Durable Thermoplastic; Heavy Gauge, Double Wipe Copper Alloy Contacts; Easy to Wire Terminals Accept up to #4 AWG Conductor; Terminals Marked for Easy Identification and Fast Wiring; Surface Mount Devices are Commercial Grade and have Concentric Knockouts for 3/4 Inch and 1 Inch Conduit and Adjustable Cord Clamp for Back and Bottom Entrance of Cable - Additional Information: Power Rating 2 HP; Wire Size up to 4 AWG; Operating Temperature Rating -40 to 60 Deg C; Application Industrial; Applicable Standard ANSI C-73, UL 94 V-2, NOM 057, NEMA WD-6, ISO 9001
