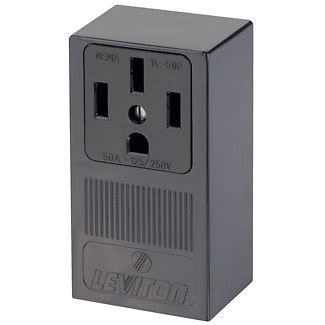

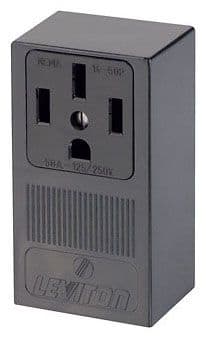

Leviton Mfg Co - Leviton 55050 125/250 Volt 50 Amp 3-Pole 4-Wire NEMA 14-50R 3 Hp Black Thermoplastic Surface Mount Straight Blade Receptacle
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 078477100257
Amperage - 50 Amp
Applications - Commercial
Catalog Number - 55050
Color - Black
Packaging
1 ea
EAN
00078477100257
Part #
170017
Catalog #
55050
Commercial reference
55050
12-Digit UPC:
078477100257
Amperage:
50 Amp
Applications:
Commercial
Catalog Number:
55050
Color:
Black
Conductor Size:
14-6 AWG
Current:
50 Amp
ERP_productname:
LEV 55050 BLK SURF RCPT-NEMA14-50R
Family Brand Name:
Leviton
Grade:
Commercial
Horsepower:
3 hp
Material:
Thermoplastic
Mounting Type:
Surface
NEMA:
14-50R,WD-6
Number of Poles:
3 Pole
Number of Wires:
4 Wire
Size:
4.82 H x 2.68 W x 24 D IN
Tc Connection:
Side Wired
Type:
Straight Blade
Voltage:
125/250 Volt
Wire Size:
14-6 AWG
SoneparProductId:
SKU_US_26333045
Built of durable thermoplastic, Leviton Power Receptacles . come equipped with heavy-gauge, double-wire copper alloy contacts. To ensure correct and speedy wiring, terminals have ID markings. Additional Information: Power Rating 3 HP; Wire Size up to 4 AWG; Strap Material Galvanized Steel; Face Material Thermoplastic; Operating Temperature Rating -40 to 60 Deg C; Application Industrial, School, Hospital and Commercial Office Building; Applicable Standard ANSI C73, UL 94 V-2, NOM 057, NEMA WD-6 - Features: Built of Durable Thermoplastic; Heavy Gauge, Double-Wipe Copper Alloy Contacts; Easy to Wire Terminals Accept up to #4 Awg Conductors; Terminals Marked for Easy Identification and Fast Wiring; Surface Mount Devices are Commercial Grade and have Concentric Knockouts for 3/4 Inch and 1 Inch Conduit and Adjustable Cord Clamp for Back and Bottom Entrance of Cable
