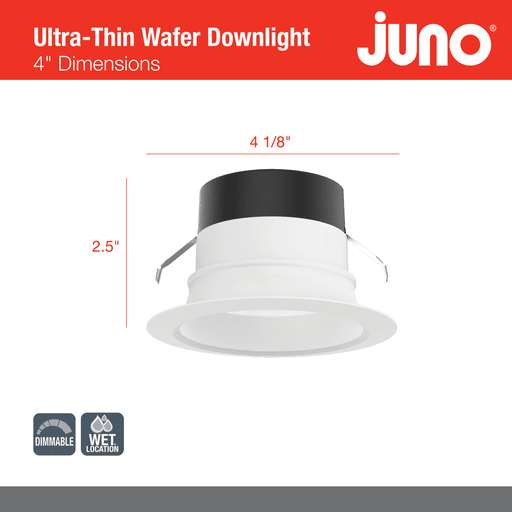

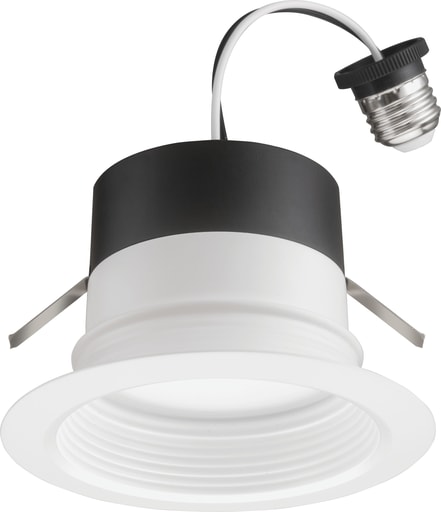

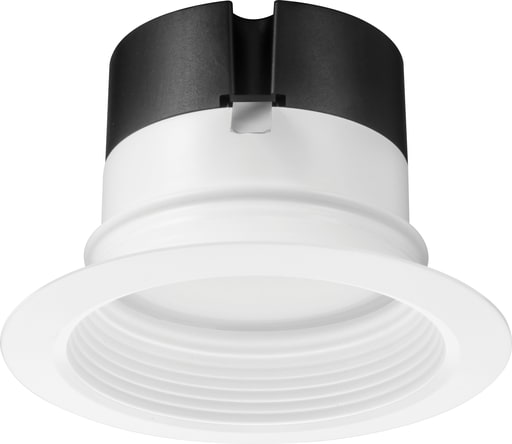

The E Series LED Recessed Module with Switchable White feature offers flexibility for lighting a space to the desired colour temperature with the integrated switch that allows for simple colour temperature adjustment directly on the trim to change from 2700K, 3000K, 3500K, 4000K or 5000K at 90 CRI.Providing optimized value, the LED trim module is designed for easy installation into typical 4. residential housings using friction clips. The E Series is ideal for retrofitting into most existing 4. recessed, remodel or new construction housings for residential, multi-family, and light commercial applications. The E Series combines dependable performance and low cost with the virtually maintenance-free, energy-saving benefits of a 50,000 hour rated-life LED.Field installable, colour finish trim inserts available in baffle and smooth styles to further customize your space with designer finishes including matte black, brushed nickel, and oil-rubbed bronze. Features: COLOR TEMPERATURE TECHNOLOGY: 5 switching color temperatures to choose with a switch ranging from warm (2700K) to daylight (5000K) allowing customization for endless applications; ELECTRICAL: Center 2 Edge™ (patent pending) technology created for a single point source; Primary power disconnect provided for simple connection to a dedicated LED connector in the housing; DIMMABLE: Dimming down to 10 percent with most standard incandescent dimmers; RATINGS/LISTINGS: CSA certified to US and Canadian safety standards, can be used to comply with California Title 24 Part6 High Efficacy LED Light Source Requirements, Wet location listed, WSEC ASTM E283 for Air-Tight (with IC housings); INSTALLATION: Suitable for installation in standard height rough-in sections, the friction clips allow fitment into cans with an inside diameter of 4 in. to 4.5 in.; HOURS OF LIFE: LED module maintains at least 70 percent light output for up to 35,000 hours; OPTICS: diffused lens to provide even light distribution for general illumination, equivalent to 65W BR30 lamp; MATERIAL: Aluminum spun reflector with deep regression for reduced glare; WARRANTY: 5-year limited warranty; DIMENSIONS: Aperture: 4-1/8in (10.5cm), Overlap trim: 5-1/4in (13.3cm), Height: 2-1/2in (6.3cm) - Applications: Hospitality; Residential; Retail; Retrofit - Standards: CSA; CSAus; NOMCA Title 20; CA Title 24; ENERGY STAR; JA8
