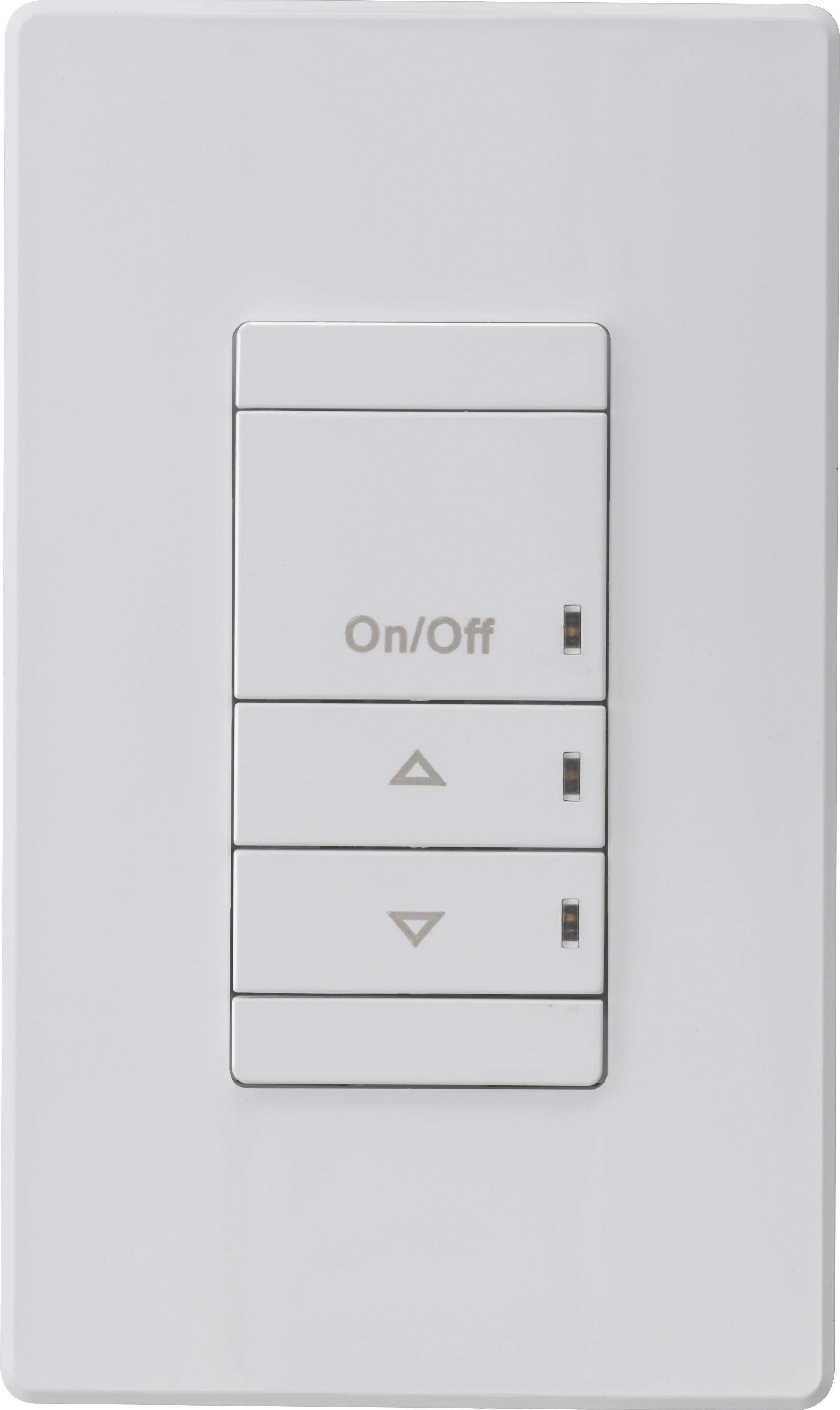

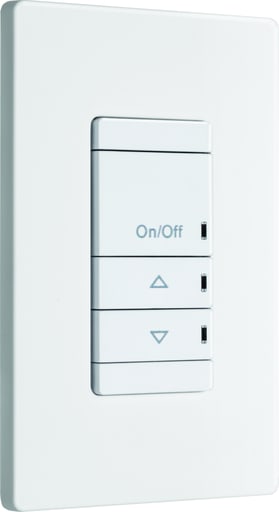

Lithonia Lighting - LIT SPODMRA MWO D WH Switch

The push-button Dimming Series of wall stations are a cost-effective solution for commercial lighting applications. sPODMRA units come preconfigured for wiring without a neutral, however, if a connection to neutral is required by code, contractors can convert the unit in seconds. Features: sPODMRA switches have a patent pending wiring method that enables them to function either with orwithout a neutral connection; COMPATIBILITY: Compatible with 0-10V dimming luminaries; Each MWO device can switch and dim individually. Switching and Dimming will be performed simultaneously across the devices connected through the communicationwire; DESIGN: sPODMRA MWO can be used in conjunction with WSXA MW RoHS; VOLTAGE: Low Voltage Leads and Line Voltage Leads 0-10VDC; CONNECTIVITY: Connect up to 9 devices with neutral wiring or up to 2 devices without neutral wiring on a single traveler; DESIGN LAYOUT: Wall switches can be spaced up to 250 feet apart; WALLPLATE: Standard screw-less wall plate included in white; WARRANTY: 5-year limited warranty; DIMENSIONS: 2.74.H x 1.68.W x 1.63.D (70mm x 43mm x 41mm) - does not include ground strap - Applications: Education; Government; Healthcare; Hospitality; Offices & Banks; Retail - Standards: cUL; C-UL-USCA Title 24
