Lithonia Lighting - LITH CPRB 24LM MVOLT 40K 80CRI DWH

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 196182615498

  • Applications - Common Areas,Sports And Recreation,Warehouses

  • Catalog Number - CPRB 24LM MVOLT 40K 80CRI DWH

  • Color - White

  • Color Rendering Index - 80

Packaging

  • 1 ea

EAN

00196182615498

Part #

266247

Catalog #

CPRB24LMMVOLT40K80CRIDWH

Commercial reference

CPRB24LMMVOLT40K80CRIDWH

12-Digit UPC:

196182615498

Applications:

Common Areas,Sports And Recreation,Warehouses

Catalog Number:

CPRB 24LM MVOLT 40K 80CRI DWH

Color:

White

Color Rendering Index:

80

Color Temperature:

4000 K

Construction:

New Construction,Remodel

Country of Origin:

China

ERP_productname:

LITH CPRB24LMMVOLT40K80CRIDWH COMPACT PRO LED HIGHBAY

Environment:

Indoor

Family Brand Name:

Lithonia Lighting

Finish:

Gloss

Heights:

3.35 Inch

Length:

15.14 Inch

Lens Color:

Clear

Lumens:

24,000 Lumen

Material:

Steel

Mounting Type:

Pendant,Surface,Suspended

Product Type:

High Bay

Shape:

Round

Type:

High Bay

Voltage:

120 Volt

Wattage:

170 Watt

Widths:

15.14 in

SoneparProductId:

SKU_US_345272270

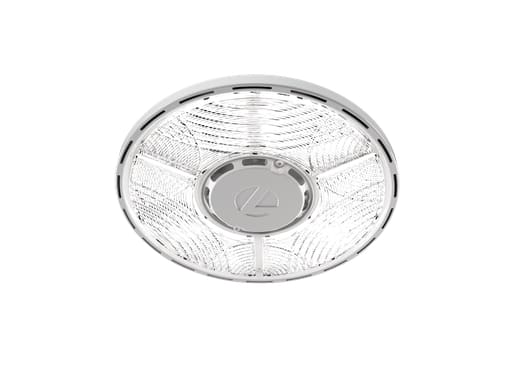

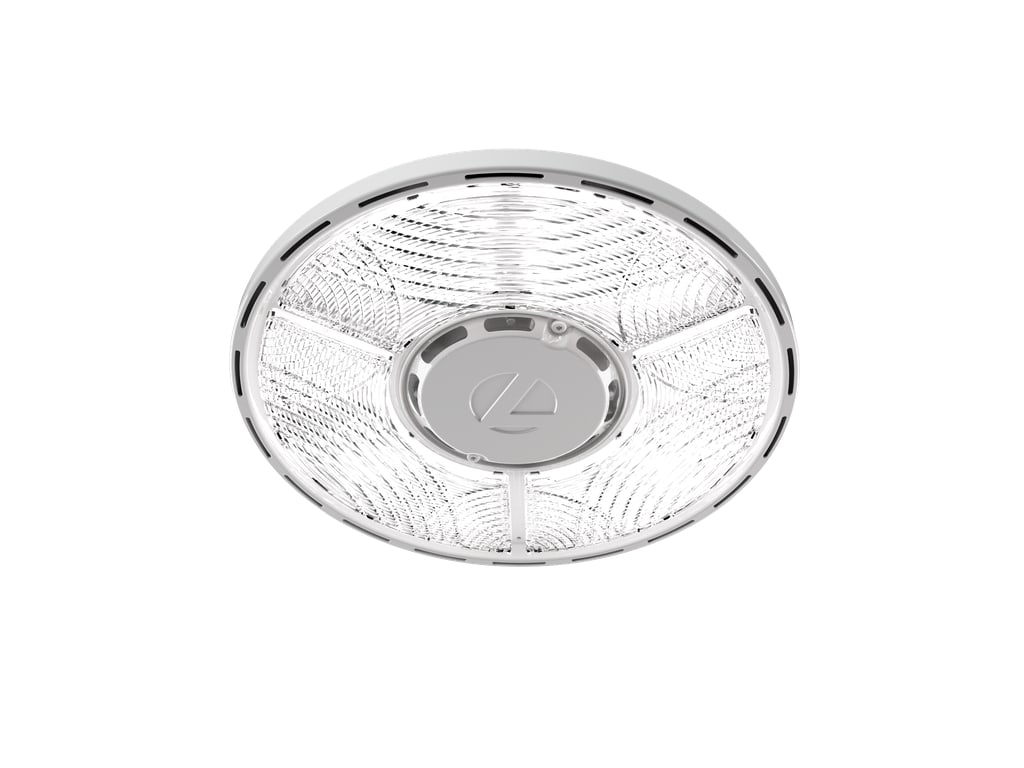

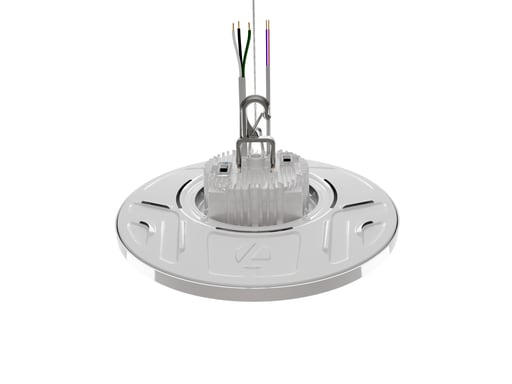

The Compact Pro High Bay (CPRB) is a budget-oriented high bay designed specifically with the contractor in mind. Its compact design makes it easier and quicker to install. CPRB is built with quality to last and performance to meet the needs of the job, making it the best choice for affordable and reliable light-duty industrial applications Features: TECHNOLOGY: Patent-pending Tri-Radial polycarbonate lens meets DLC 5.1 Premium glare rating which diffuses light the source and reduces glare while protecting LEDs; ENERGY SAVINGS: Long-life LEDs, coupled with a high-efficiency driver, provide superior illumination for extended service life; CONTROLS: 0-10V dimming driver standard for 10% to 100% dimming capabilities; Available with nLight® AIR Wireless Controls option; RATINGS: CSA listed, Damp location listed, IP54 rated, designed for ambient temperature ranging -40±C to 55±C; VOLTAGE: Multi-volt driver 120-277V; HOURS OF LIFE: 70% lumen maintenance at > 100,000 hours; INSTALLATION: Includes patent-pending permanently attached hook with safety latch feature and 7' galvanized safety cable standard; BATTERY: Emergency battery pack, 40W AC output, sold separately; WARRANTY: 5-year limited warranty; DIMENSIONS: 15.14 in. x 15.14 in. x 3.35 in.
