Lithonia Lighting - LITH ESXF4 ALO SWW2 UVOLT YS DDB M2

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 196182393297

  • Applications - Automotive & Parking,Decorative,Education,Entertainment,Food Service,Government,Healthcare,Hospitality,House Of Worship,Manufacturing,Offices & Banks,Parking Garage,Residential,Retail

  • Catalog Number - ESXF4ALOSWW2UVOLTYSDDBM2

  • Color - Bronze

  • Color Rendering Index - 80

Packaging

  • 1 ea

EAN

00196182393297

Part #

239743

Catalog #

ESXF4ALOSWW2UVOLTYSDDBM2

Commercial reference

ESXF4ALOSWW2UVOLTYSDDBM2

12-Digit UPC:

196182393297

Applications:

Automotive & Parking,Decorative,Education,Entertainment,Food Service,Government,Healthcare,Hospitality,House Of Worship,Manufacturing,Offices & Banks,Parking Garage,Residential,Retail

Catalog Number:

ESXF4ALOSWW2UVOLTYSDDBM2

Color:

Bronze

Color Rendering Index:

80

Country of Origin:

Vietnam

ERP_productname:

LITH ESXF4ALOSWW2UVOLTYSDDBM2

Environment:

Outdoor

Family Brand Name:

Lithonia Lighting

Finish:

Gloss

Heights:

3.12 Inch

Length:

17.66 Inch

Lumens:

20,500 Lumen

Material:

Aluminum

Mounting Type:

Tenon Slipfitter,Yoke

Product Type:

Floodlight

Shape:

Rectangle

Type:

Floodlight

Voltage:

120 Volt

Wattage:

150 Watt

Widths:

10.54 in

SoneparProductId:

SKU_US_308939343

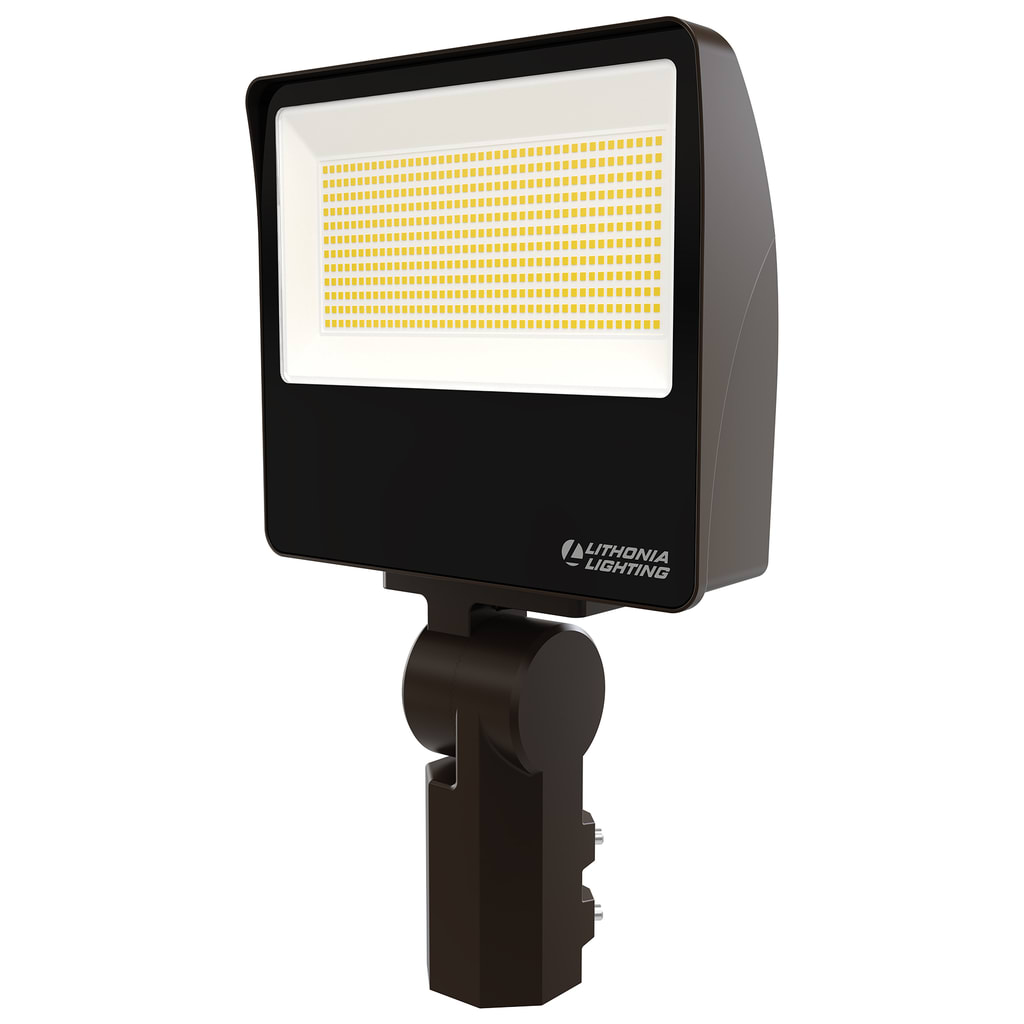

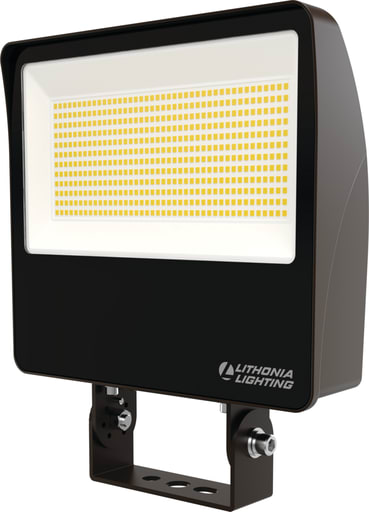

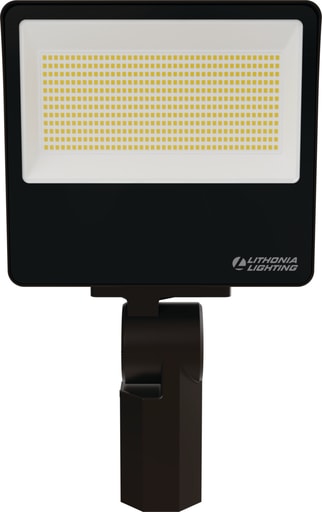

The Lithonia Lighting® ESXF LED all-in-one floodlight gives you the superior illumination you want. ESXF delivers easy access to adjustable lumen output, color switching, and a selectable photocell, so you always have the luminaire you need on the spot. Choose your mounting with two popular mounting options standard in each box. Application: Automotive & Parking; Decorative; Education; Entertainment; Food Service; Government; Healthcare; Hospitality; House of Worship; Manufacturing; Offices & Banks; Parking Garage; Residential; Retail - Features: DESIGN: The Lithonia Lighting® ESXF LED is the all-in-one floodlight, providing easy access to adjustable lumen output (ALO), tri-level CCT switching, and selectable dusk-to-dawn photocell; ENERGY SAVINGS: Energy-efficient LEDs with lumen output of 16000, 18000, and 20000 lumens; SELECTABLE: Adjustable Lumen Output, Switchable CCT (3000K, 4000K, 5000K) and Standard Photocell; RATINGS: IP66 Rated aluminum housing, DLC Certified, CSA certified to US and Canadian standards; VOLTAGE: UVOLT (120-347V), utilizes electronic drivers that are 0-10V, capable of continuous dimming and ensure system power factor >90% and THD <20%; INTENDED USE: Designed to provide a cost effective, energy-efficient solution for the one-for-one replacement of existing traditional sources; INSTALLATION: Include a yoke mount for solid surface mounting and an integral slipfitter that mates with standard 2 3/8\" tenons for pole-top mounting, models ship standard with 18. SO cord; CONSTRUCTION: Sealed die-cast aluminum body and IP66 listed to withstand moisture and the elements; WARRANTY: Five-year limited warranty - Mounting: Tenon Slipfitter; Yoke - Standard: C-UL-USDLC Premium
